Manufacturing Company :

WisGate Developer D3

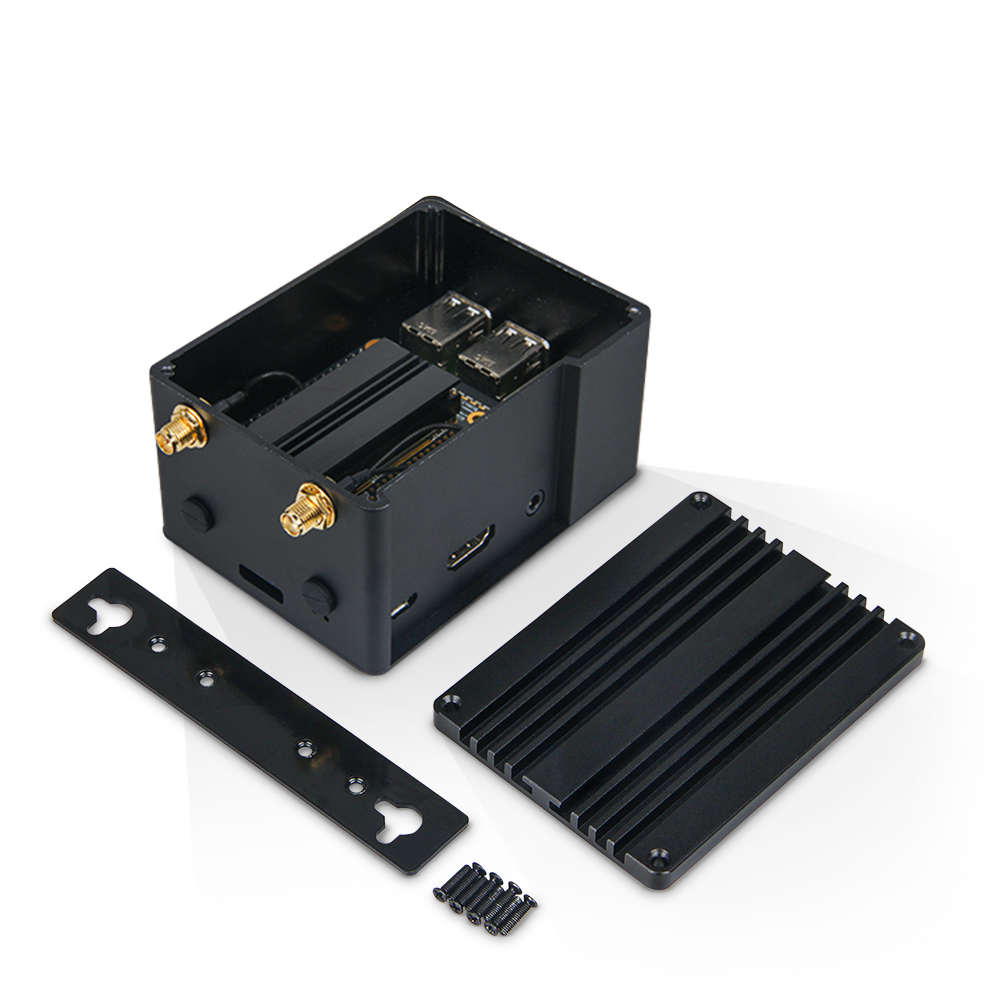

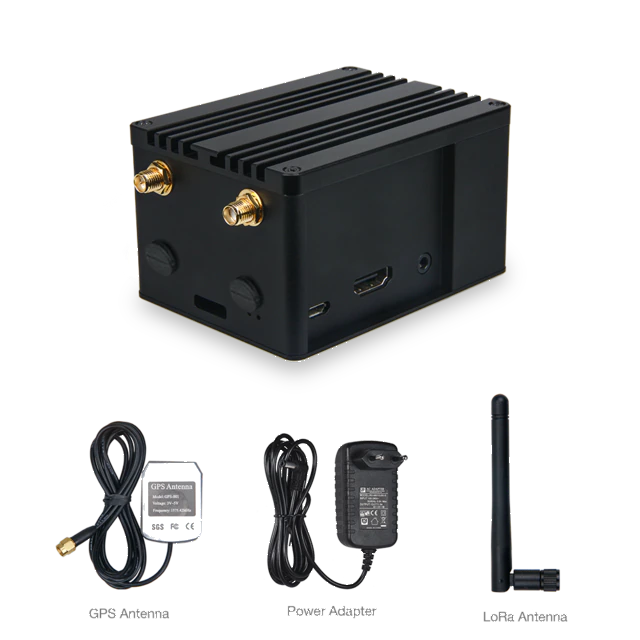

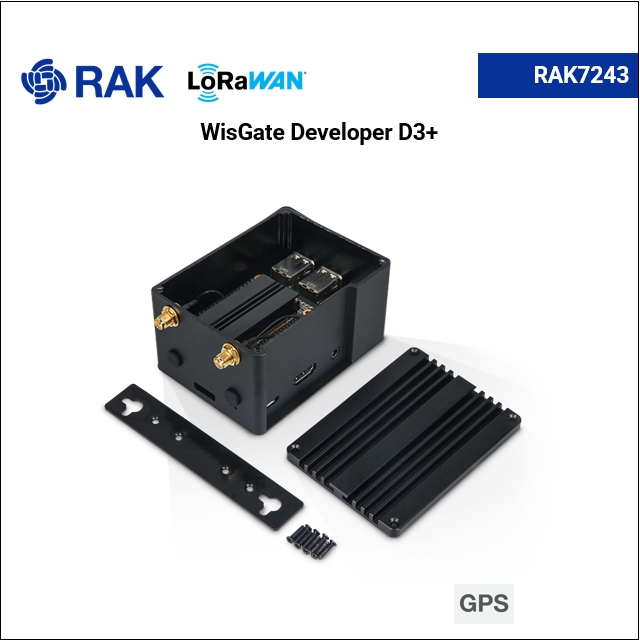

The RAK7243C is a fully-fledged 8 channel LoRaWAN® gateway that is Class A and C compliant. It consists of the following modules: RAK2245, RAK2013, and Raspberry Pi 3B+.

Frequency band

SG$ 263.12

This combination does not exist.

Lead Time : 2.0 weeks

Add to Cart Get Best Price

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies..

Do something

Overview

The RAK7243C is a fully-fledged 8 channel LoRaWAN® gateway that is Class A and C compliant. It consists of the following modules: RAK2245, and Raspberry Pi 3B+.

At its core is the Raspberry Pi 3B+, which integrates all the other hardware components and runs the OS. The RAK2245 is the concentrator module, playing the role of a LoRa® transceiver. (in addition to the Wi-Fi and Ethernet of the Raspberry Pi 3B+).

Software-wise one could choose to either go with TTN or LoRa Server in addition to bringing his own solution. TTN is more suitable for public, cloud deployment. LoRa Server provides a solution that can be run on a private server or the gateway itself.

Thus the RAK7243C is a flexible solution suitable for both small scale projects, as well as large scale industrial solutions. It provides a variety of connectivity options and its size and weight make it ideal for indoor deployment.

Features

Preassembled, fully functioning LoRaWAN Gateway
Full LoRaWAN Stack support (version 1.0.2)
Supports all 8 channels and spreading factors (SF7-SF12)
Band support: 433MHz, 470MHz, 865MHz, 868MHz, 915MHz, 920MHz, 923MHz
Tx Power: 27 dBm Max
RX Sensitivity: -139dBm
The new design integrates Ublox MAX-7Q GPS module
