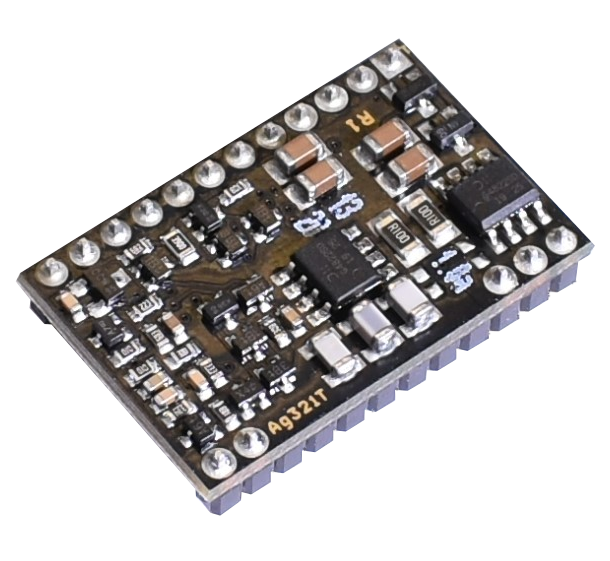

Ag321T 15W Qi Compatible Wireless Charging Transmitter Module

The Ag321T is a 12V DC input wireless power transmitter module; designed to work with the matched Ag320R and Qi compatible 15W wireless power receivers. Typically used in higher power wireless charging applications.

This product is no longer available.

The Ag321T is a 12V DC input wireless power transmitter module; designed to work with the matched Ag320R and Qi compatible 15W wireless power receivers. Typically used in higher power wireless charging applications.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Silvertel

Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality. Qi Wireless Power modules - transmit and receive. , Battery charger modules for Lithium Ion (Li-Ion), Lithium Polymer (Li-Po) and sealed Lead Acid (SLA) batteries. Analog Telecom modules - SLIC and DAA (FXS and FXO).


FIND OUT MORE

Overview

The Ag321T is a 12V DC input wireless power transmitter module; designed to work with the matched Ag320R  and Qi-compatible 15W wireless power receivers. Typically used in higher power wireless charging applications.

Features

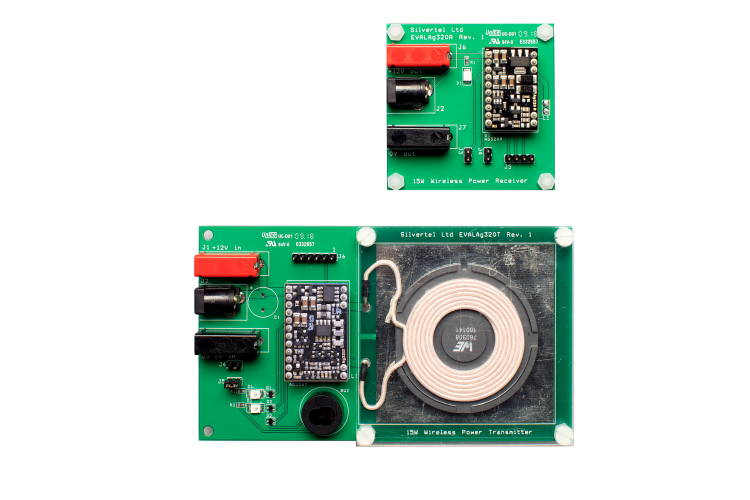

  • Complementary Module Pair Ag321T (Transmit Power) & Ag320R (Receive Power)

  • Up to 15 Watts Wireless Power

  • Low profile DIL package modules

  • 12V Input

  • Automatic Compatible Receiver Verification

  • Low bit rate (4 bytes/s) user Accessable data transfer to Ag321T

  • Overload & Short-circuit Protection

  • Low Standby Power Consumption

This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Description

The Ag321T is a wireless power transmitter module; designed to work with a 15W Qi the receiver or the Ag320R to deliver 15W maximum power or backward compatible at 5W with any other Qi compliant wireless power receiver (E.g. the Ag301), typically used in wireless charging applications. With the increased use of mobile & portable devices, the Ag321T wireless power module offer a wide range of benefits: - There are no cables to get tangled and you don’t have the problem of having different plugs or sockets for various devices. There is no risk of electrical shock, as there are no exposed metal parts. Can be used in explosive environments as there are no contacts to cause sparks. This means that there is no contact degradation due to friction, corrosion or abrasion. The units can be completely sealed for use in harsh environments, as its operation is not affected by dirt, dust, water or chemicals and can even be used underwater. Can be used in a medical environment where disinfecting and sterilization is required. The Ag321T has 3 times the power of standard Qi wireless power making it suitable for higher power applications.
