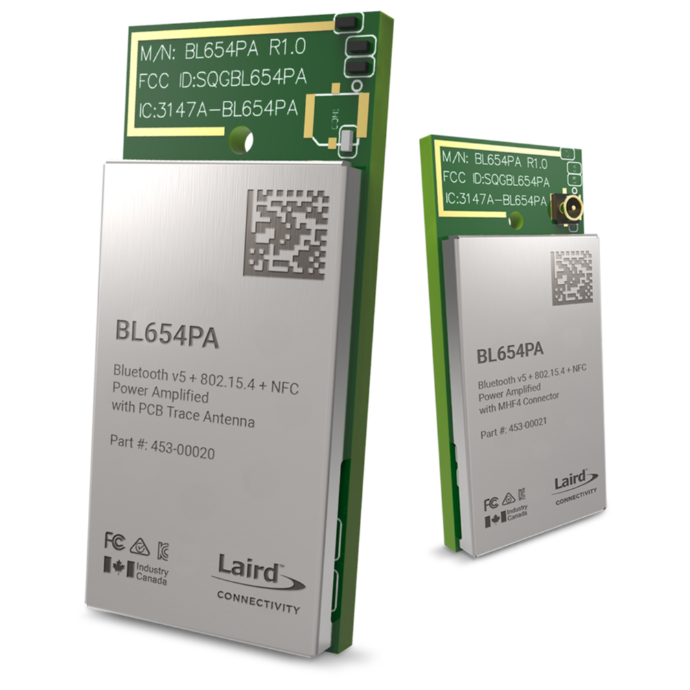

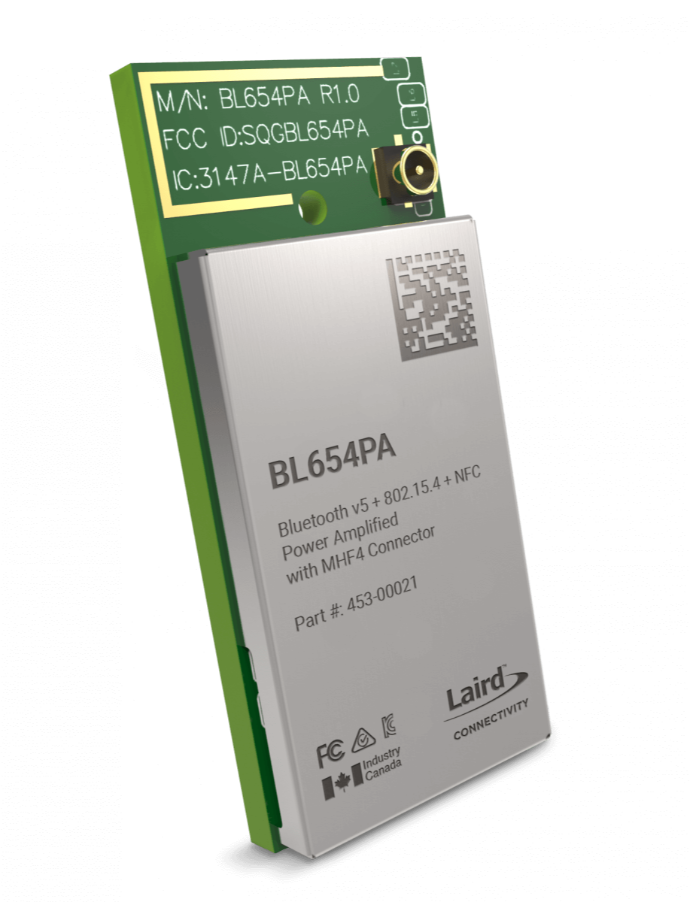

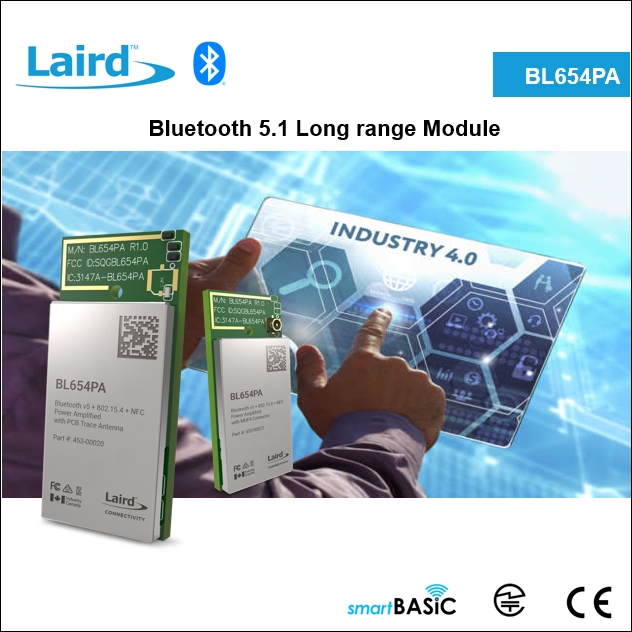

BL654PA Bluetooth 5.1 long range module

he BL654 series comes the most powerful yet - the BL654PA series! It provides OEMs with the maximum design flexibility and performance. A complete multi-protocol embedded wireless offering with exceptional processing capability, all with extended PA / LNA support for even greater range.

  • Interfaces
  • BT Class
  • Other wireless
  • Operation Temperature
  • Stack on Board
  • Antenna
  • BLE connection
  • Bluetooth mode
  • Certification
  • Transmit Power
  • Chipset

SG$ 20.49

This combination does not exist.

Lead Time : 16.0 weeks

Add to Cart Get Best Price

he BL654 series comes the most powerful yet - the BL654PA series! It provides OEMs with the maximum design flexibility and performance. A complete multi-protocol embedded wireless offering with exceptional processing capability, all with extended PA / LNA support for even greater range.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Laird Connectivity

Laird Connectivity simplifies the rapid integration of wireless technologies with market-leading wireless modules and antennas, integrated sensor and gateway platforms, and customer-specific wireless solutions. Our best-in-class support and comprehensive engineering services help reduce risk and improve time-to-market.


FIND OUT MORE

Overview


Building on Laird Connectivity’s expertise with Nordic from the BL654 series comes the most powerful yet - the BL654PA series! It provides OEMs with maximum design flexibility and performance. A complete multi-protocol embedded wireless offering with exceptional processing capability, all with extended PA / LNA support for an even greater range.


Powered by Nordic’s nRF52840 silicon, the small form factor BL654PA modules and DVKs provide for a secure, robust BLE and Cortex-M4F CPU for any OEM’s product design. The BL654 provides you with maximum development flexibility with programming options for a simple, intuitive AT Command Set, as well as Laird Connectivity’s own smartBASIC environment.


Features


  • Bluetooth v5.1 Bluetooth Low Energy (BLE) plus NFC

  • Widest range of configurable interfaces: UART, I2C, SPI, ADC, GPIO, PWM,FREQ, USB, and NFC

  • Industrial Temp Rating (-40º to +85º C)

  • Ultra-Small footprint (22 mm x 10 mm x 2.2 mm)

  • BLE Peripheral/Central roles with DTM embedded

  • 2Mbps & LE Long Range: Support for 2 Mbps, 1 Mbps, & 125 kps coded

  • Hostless operation – Internal MCU reduces BOM

  • Powerful Core Cortex-M4F (1 Mbit Flash, 256 k RAM)

  • Built on years of experience with Nordic (BL600 & BL652 Series)

  • Fully featured development kit everything needed to start BLE development

  • Application Design Choice: Leverage Laird’s smartBASIC or simple AT Command Set

  • Integrated Power Amplifier: Up to +18 dBM output power (up to +14 dBm in LE Coded mode – 125 kbps PHY


Applications

Specifications for BL654PA Bluetooth 5.1 long range module

MCU
Interfaces UART
Uncategorized
Antenna External Antenna or Integrate Antenna
BT Class Class 1
Other wireless NFC
Operation Temperature -40 °C ~ +85 °C
Stack on Board Yes
BLE connection 20
Bluetooth mode BLE5.1
Certification FCC/IC/CE/MIC/RCM
Transmit Power 18dBm
Chipset nRF52840
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Building on Laird’s expertise with Nordic from the BL654 series comes the most powerful yet - the BL654PA series! It provides OEMs with  maximum design flexibility and performance. A complete multi-protocol embedded wireless offering with exceptional processing capability, all with extended PA/LNA support for an even greater range. Powered by Nordic’s nRF52840 silicon, the small form factor BL654PA modules and DVKs provide for a secure, robust BLE and Cortex -M4F CPU for any OEM’s product design. The BL654 provides you with maximum development flexibility with programming options for a simple, intuitive AT Command Set, as well as Laird’s own smartBASIC environment. The BL654PA series brings out all nRF52840 hardware features and capabilities including USB access, up to 5.5V supply considerations, and builds in additional TX power capabilities via an integrated Skyworks PA. Complete regulatory certifications enable faster time to market and reduced development risk completes Laird's simplification of your next Bluetooth design!


Features


  • Bluetooth v5.1 Bluetooth Low Energy (BLE) plus NFC

  • Widest range of configurable interfaces: UART, I2C, SPI, ADC, GPIO, PWM,FREQ, USB, and NFC

  • Industrial Temp Rating (-40º to +85º C)

  • Ultra-Small footprint (22 mm x 10 mm x 2.2 mm)

  • BLE Peripheral/Central roles with DTM embedded

  • 2Mbps & LE Long Range: Support for 2 Mbps, 1 Mbps, & 125 kps coded

  • Hostless operation – Internal MCU reduces BOM

  • Powerful Core Cortex-M4F (1 Mbit Flash, 256 k RAM)

  • Built on years of experience with Nordic (BL600 & BL652 Series)

  • Fully featured development kit everything needed to start BLE development

  • Application Design Choice: Leverage Laird’s smartBASIC or simple AT Command Set

  • Integrated Power Amplifier: Up to +18 dBM output power (up to +14 dBm in LE Coded mode – 125 kbps PHY
