EM500-LGT Ambient Light Sensor

Resolution: 1 lux 19000 mAh Li-SOCL2 battery NFC enabled IP66 rated Cable Length: 3m

Configuration Interface
Cable length
Frequency band
Sensor
Waterproof
Power type
Sensor Measurement Range
Battery Capacity

SG$ 342.45

This combination does not exist.

Lead Time : 3.0 weeks

Add to Cart Get Best Price

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Milesight

At Milesight IoT, we are passionate about the connectivity of “things” to the cloud. We leverage the value of the top trending technologies that transform the world we live in and are committed to our partners who share the same passion.

FIND OUT MORE

Overview

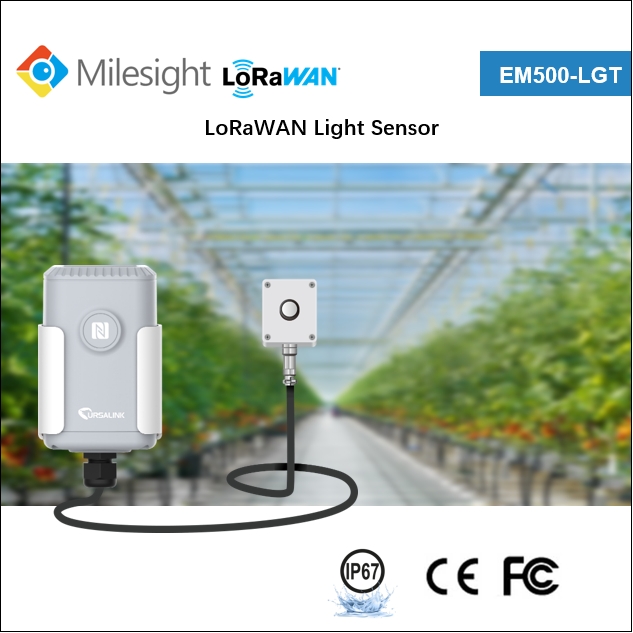

EM500-LGT is designed for ambient light intensity detection in harsh environments. It is useful in many applications, such as brightness control, security, horticulture, floriculture and so on.

Features

Measuring ranges from 0 to 100,000 lux
Fast Response 1 second
10-year battery life with low maintenance cost
Accurately detect any light changes

Specifications for EM500-LGT Ambient Light Sensor

LoRaWAN
Configuration Interface	NFC
Uncategorized
Frequency band	AS923 or AU915 or KR920 or US915
Cable length	3m
Sensor	Light Sensor
Waterproof	IP66
Power type	Battery
Sensor Measurement Range	0 to 100,000 lux
Battery Capacity	19000mAh

EM500-LGT Datasheet

Release date: December 10, 2020

EM500 Series User Guide

Release date: December 10, 2020

LoRaWAN®	Frequency	AU915/AS923
	Tx Power	20dBm
	Sensitivity	-147dBm @300bps
	Mode	OTAA/ABP Class A
Measurement	Range	0 ~ 100000 lux
	Accuracy	±3%
	Resolution	1 lux
Physical Characteristics	Power Supply	19000 mAh Li-SOCL2
	Operating Temperature	-30°C to +60°C
	Ingress Protection	Transceiver: IP66 (IP67 as required)
	Ingress Protection	Light Sensor: IP65
	Dimension	156.1 × 71 × 69.5 mm

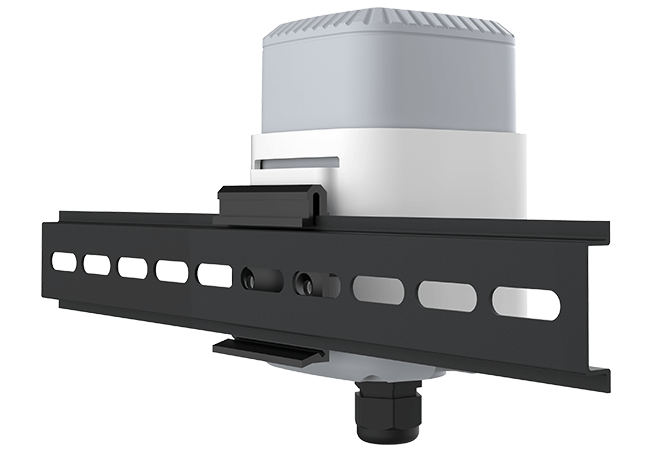

	Mounting	DIN rail, wall, pole
