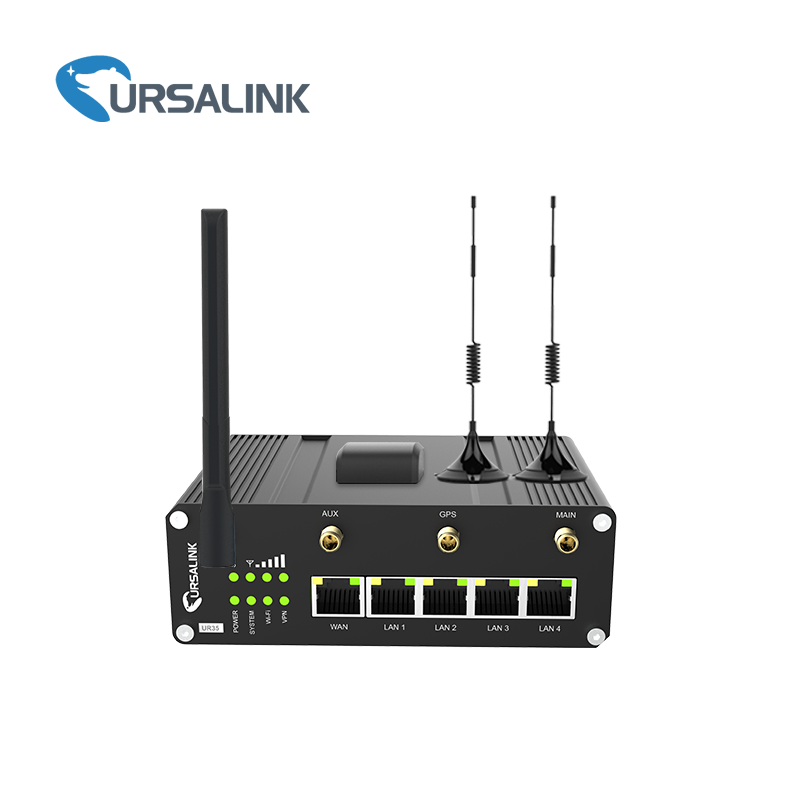

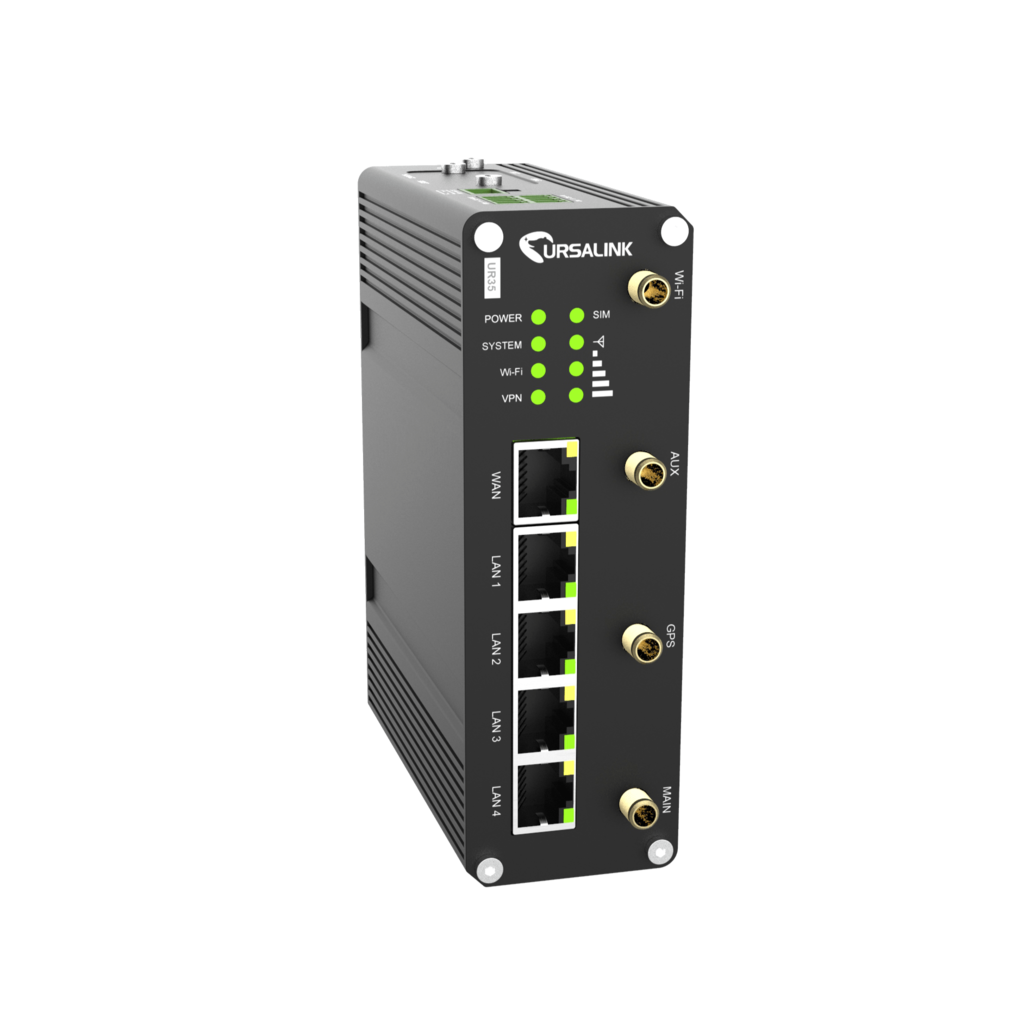

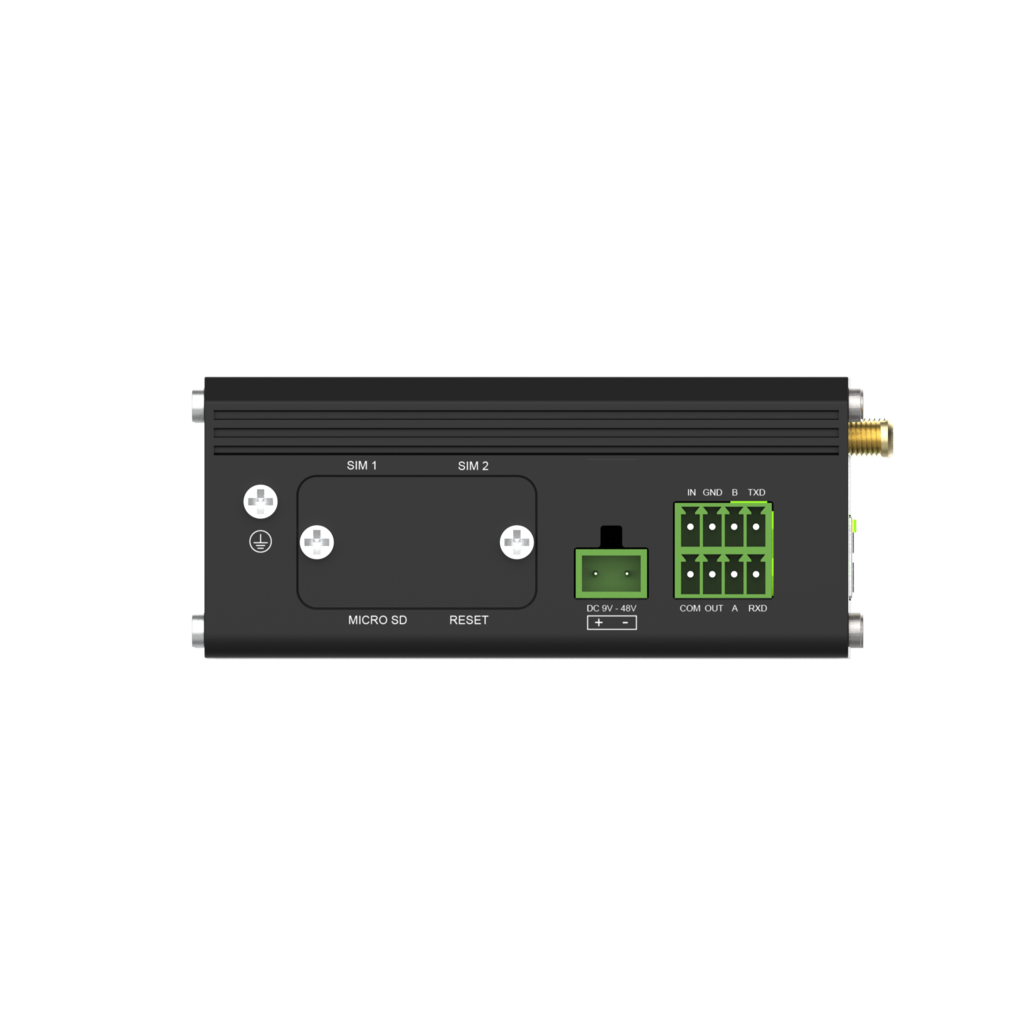

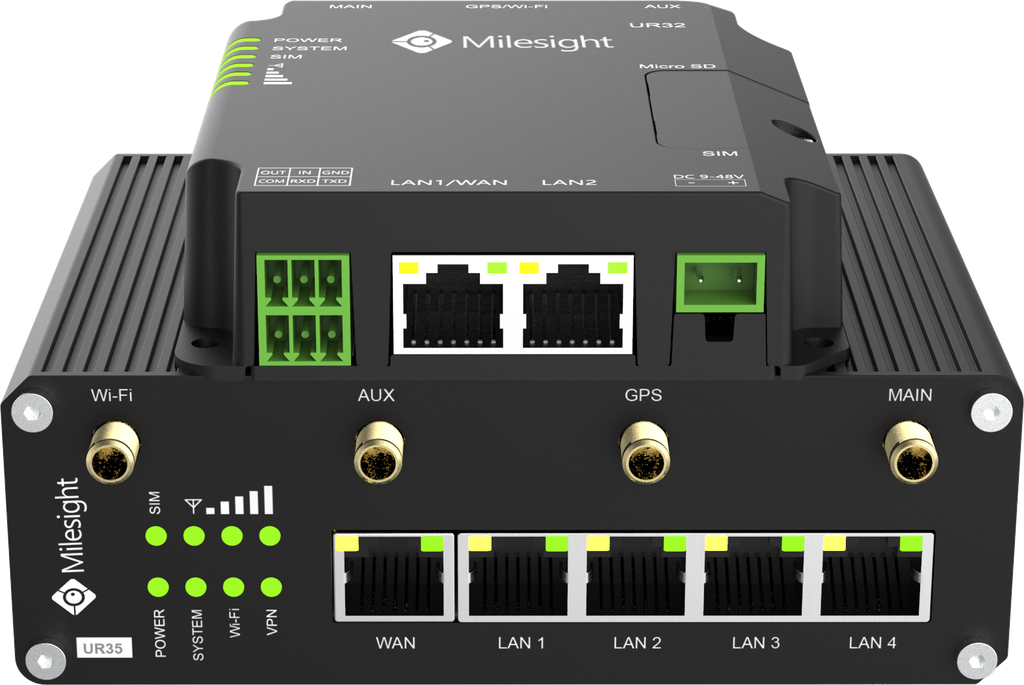

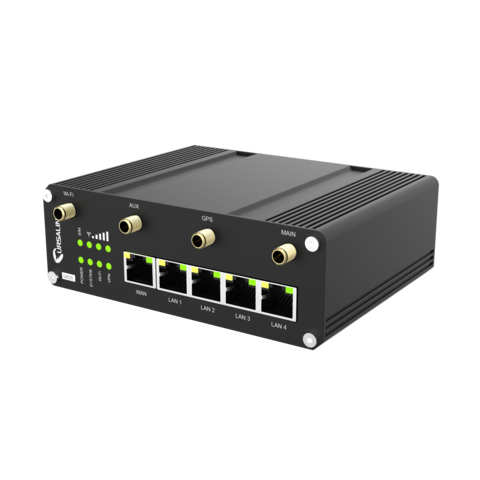

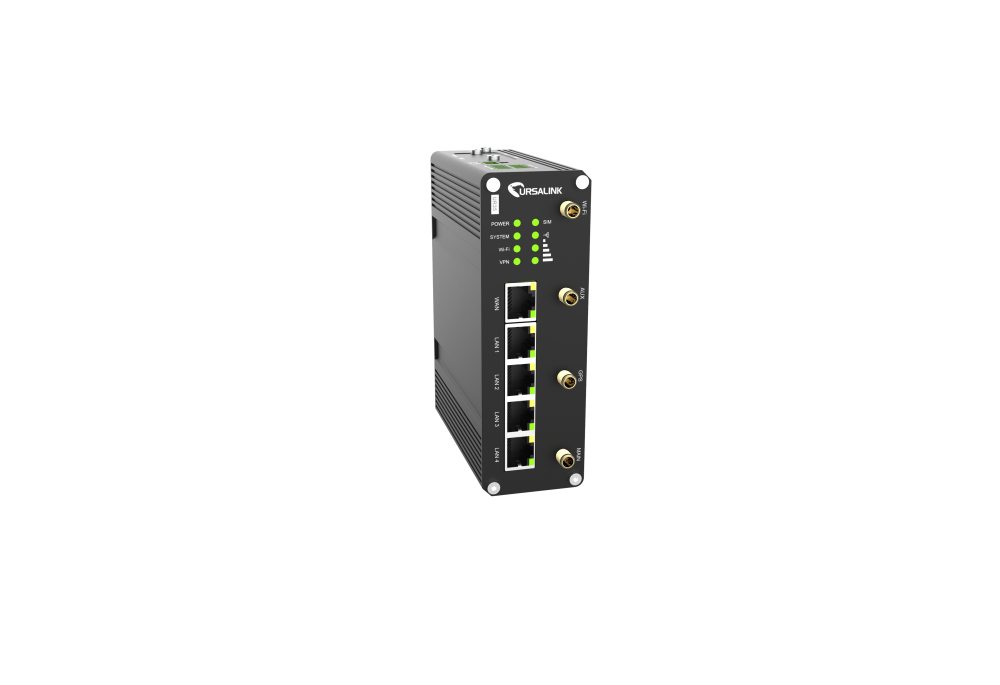

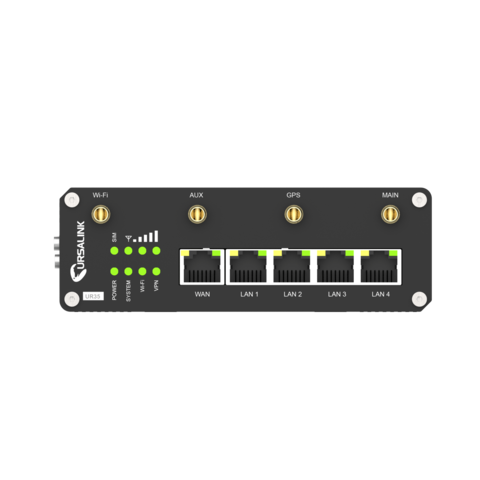

UR35 Pro Series LTE Router

The UR35 is an industrial-grade 4G LTE cellular router with a 5-port Ethernet interface for mission-critical communications. Featured with multiple network protocols and VPN tunnels, UR35 provides secure and reliable solutions for a range of M2M/IoT deployments. Supports all Australian 3G/4G bands including 700MHz.

  • SIM Slot
  • CPU
  • Ehternet Ports
  • Flash
  • RAM
  • Extended Storage
  • Serials Ports
  • Input/Output
  • Wi-Fi Compliance
  • Power Input
  • Power Output
  • Operation Temperature range
  • Variant for LTE Router

SG$ 518.12

This combination does not exist.

Lead Time : 4.0 weeks

Add to Cart Get Best Price

The UR35 is an industrial-grade 4G LTE cellular router with a 5-port Ethernet interface for mission-critical communications. Featured with multiple network protocols and VPN tunnels, UR35 provides secure and reliable solutions for a range of M2M/IoT deployments. Supports all Australian 3G/4G bands including 700MHz.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Milesight

At Milesight IoT, we are passionate about the connectivity of “things” to the cloud. We leverage the value of the top trending technologies that transform the world we live in and are committed to our partners who share the same passion.



Do something

Overview

The UR35 is an industrial-grade 4G LTE cellular router with a 5-port Ethernet interface for mission-critical communications. Featured with multiple network protocols and VPN tunnels, UR35 provides secure and reliable solutions for a range of M2M/IoT deployments. Supports all Australian 3G/4G bands including 700MHz.

Feature


  • Voice Port (FXS)

  • Rugged Enclosure with a wide operation range from -40°C to 70°C for harsh environments.

  • Dual SIM redundancy

  • Rugged Enclosure

  • 1 RS232

  • 5 Ethernet Ports – 1 x WAN + 4 x LAN

  • Supports WiFi Client and AP Mode

  • 1 Digital Input and 1 Digital Output

  • Open VPN/IPsec/PPTP/L2TP/DMVPN/GRE

Specifications for UR35 Pro Series LTE Router

Cellular
SIM Slot Dual SIM
Router
CPU 528 MHz, 32-bit ARM Cortex-A7
Ehternet Ports 5 × 10/100 Mbps
Memeory
Flash 128MB
RAM 128MB DDR
Extended Storage micro SD card up to 128 GB
Interface
Serials Ports 1 x RS232 +1 x RS485
Input/Output 1 × DI + 1 × DO
Wireless
Wi-Fi Compliance IEEE 802.11b/g/n
Power
Power Input 9-48 VDC
Power Output 4 × 802.3af/at PoE PSE
Uncategorized
Variant for LTE Router with Wi-Fi or with Wi-Fi + GPS + PoE
Operation Temperature range -40°C to +70°C
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


  • Milesight UR3x Ordering Info

    Release date: May 12, 2021

    Download

  • Milesight UR35 Datasheet

    Release date: February 22, 2021

    Download

  • Milesight UR35 Quick Guide

    Release date: December 10, 2020

    Download

  • Milesight UR35 User Guide

    Release date: December 10, 2020


  • Download

Firmware

UR35 v35.2.0.36

Release date: May 6th, 2021

WIRELESS
Cellular TechnologyCat4 – 3G/4G
WiFi2.4 GHz (b/g/n)
GPSΧ
BluetoothΧ
PORTS
Ethernet Ports5 x 10/100
LAN/WAN1x WAN + 4x LAN
WAN FailoverWAN + 2nd SIM
RS232✓
RS485Χ
Digital I/O1 x in, 1 x Out
Analog InputΧ
USBΧ
Mobile antenna2x SMA
WiFi antenna1x SMA
GPS antennaΧ
Voice Port (FXS)2x RJ11
PROCESSING
CPU528 MHz
RAM128 MB
Flash Memory128 MB
SLOTS
SIM card slots2x 2FF
Micro SD Slot✓
BAND SUPPORT
LTEB1/B2/B3/B4/B5/B7/B8/B28/B40
(700/850/900/1700/1800/1900/2100/2300/2600MHz)
WCDMAB1/B2/B5/B8
(850/900/1900/2100MHz)
