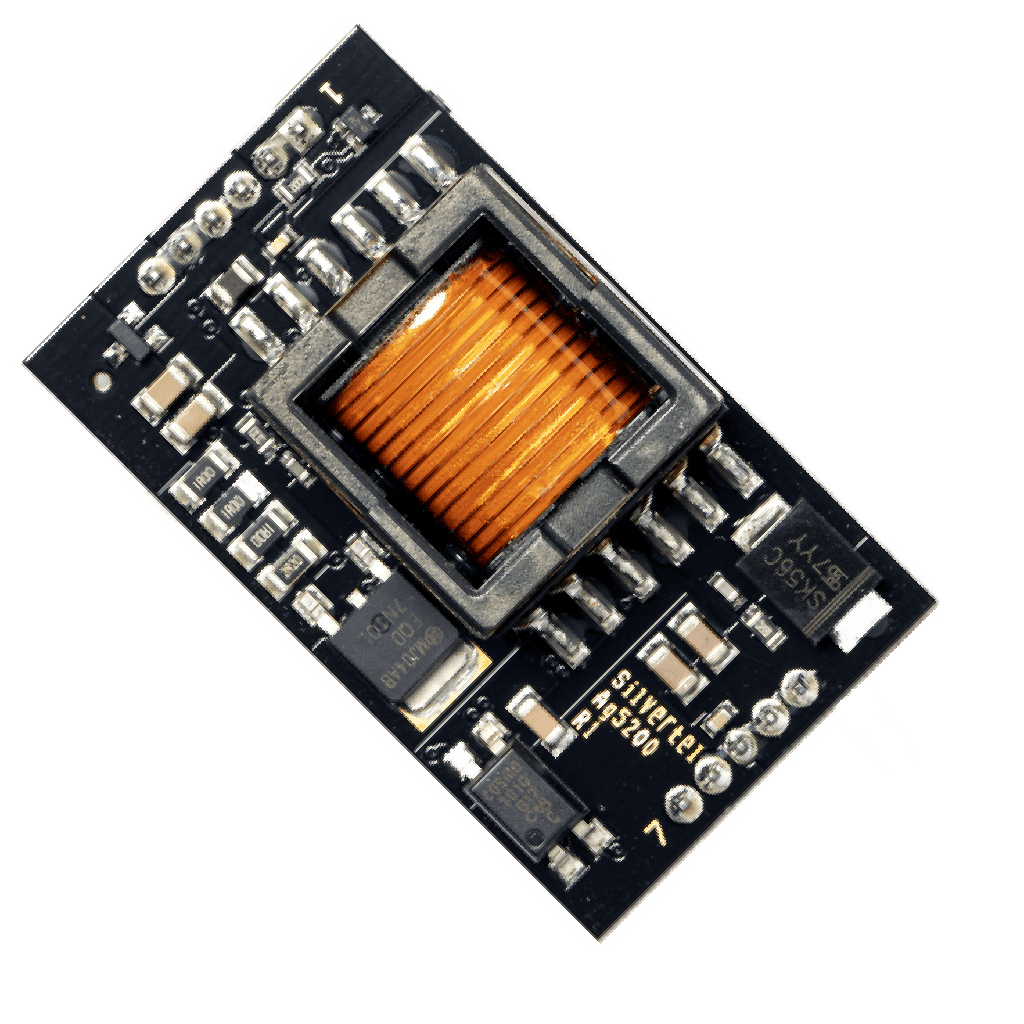

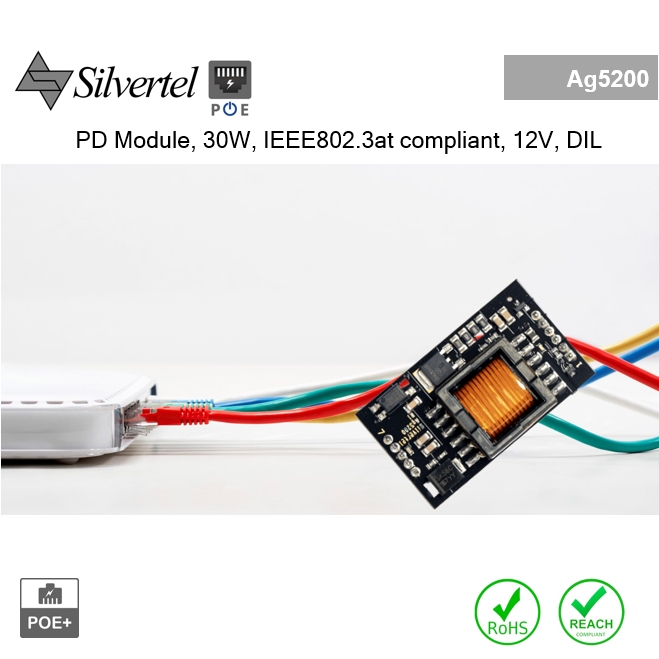

PD Module, 30W, IEEE802.3at compliant, 12V
The Ag5200 is a low cost PoE+ module that can deliver up to 30 Watts of output power. It has a small DIL format package size that is ideal for applications such as IP Telephones, WiMAX access points, PTZ cameras and remote computer terminals.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
The Ag5200 is a low-cost PoE+ module that can deliver up to 30 Watts of output power. It has a small DIL format package size that is ideal for applications such as IP Telephones, WiMAX access points, PTZ cameras and remote computer terminals. The input Signature complies with both the IEEE802.3af and IEEE802.3at specifications and it is designed to meet the safety isolation requirements of IEEE802.3at.
POE + module compliant with IEEE 802.3at & af
DIL - 51mm(L)x30mm(W)x16mm(H)
Adjustable output voltage
Input voltage range 37V to 57V
Overload, thermal, and short-circuit protection
Isolated high-efficiency DC/DC converter
Minimal low cost external components required
Low cost & simple integration
EvalAg5200 is intended for testing and evaluation of the Ag5200 POE+ PD module only. This evaluation board will work with Power Sourcing Equipment (PSE) that supplies power over the spare pair or data pairs. Please use the links provided to order boards or download the user manual.
Specifications for PD Module, 30W, IEEE802.3at compliant, 12V
|IEEE 802.3at 30W
|Power module package
|Build in Bridge
|Thermal, Overload and short-circuit
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
The Ag5200 Power-over-Ethernet (PoE) module is designed to extract power from a conventional twisted-pair Category 5 Ethernet cable, conforming to the IEEE 802.3at PoE standard.
The Ag5200 has been designed to extract power from Power Sourcing Equipment (PSE) over a conventional twisted-pair Category 5 Ethernet cable. The module's input conforms to the IEEE803.2at standard for signature recognition and class programming.
The high-efficiency DC/DC converter operates over a wide input voltage range with a low ripple and low noise output. The DC/DC converter also has built-in output overload, output short-circuit and over-temperature protection and provides a 1500Vdc (input to output) isolation barrier.
