PD Module, 60W, IEEE802.3bt Compliant, 12V/24V

The Ag5810 is an IEEE802.3bt Type 4 Power over Ethernet module that can deliver up to 60 Watts of output power. Suitable for applications such as WiMAX access points, PTZ cameras,notebook computers, IP cameras, LED lighting, intelligent displays and thin client terminals

  • Role
  • Compliance
  • Output Voltage
  • Temperature Range
  • Power module package
  • Build in Bridge
  • Channel
  • Power isolution
  • Protection

SG$ 26.44

This combination does not exist.

Lead Time : 20.0 weeks

Add to Cart Get Best Price

The Ag5810 is an IEEE802.3bt Type 4 Power over Ethernet module that can deliver up to 60 Watts of output power. Suitable for applications such as WiMAX access points, PTZ cameras,notebook computers, IP cameras, LED lighting, intelligent displays and thin client terminals

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Silvertel

Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality.


FIND OUT MORE

AG5810

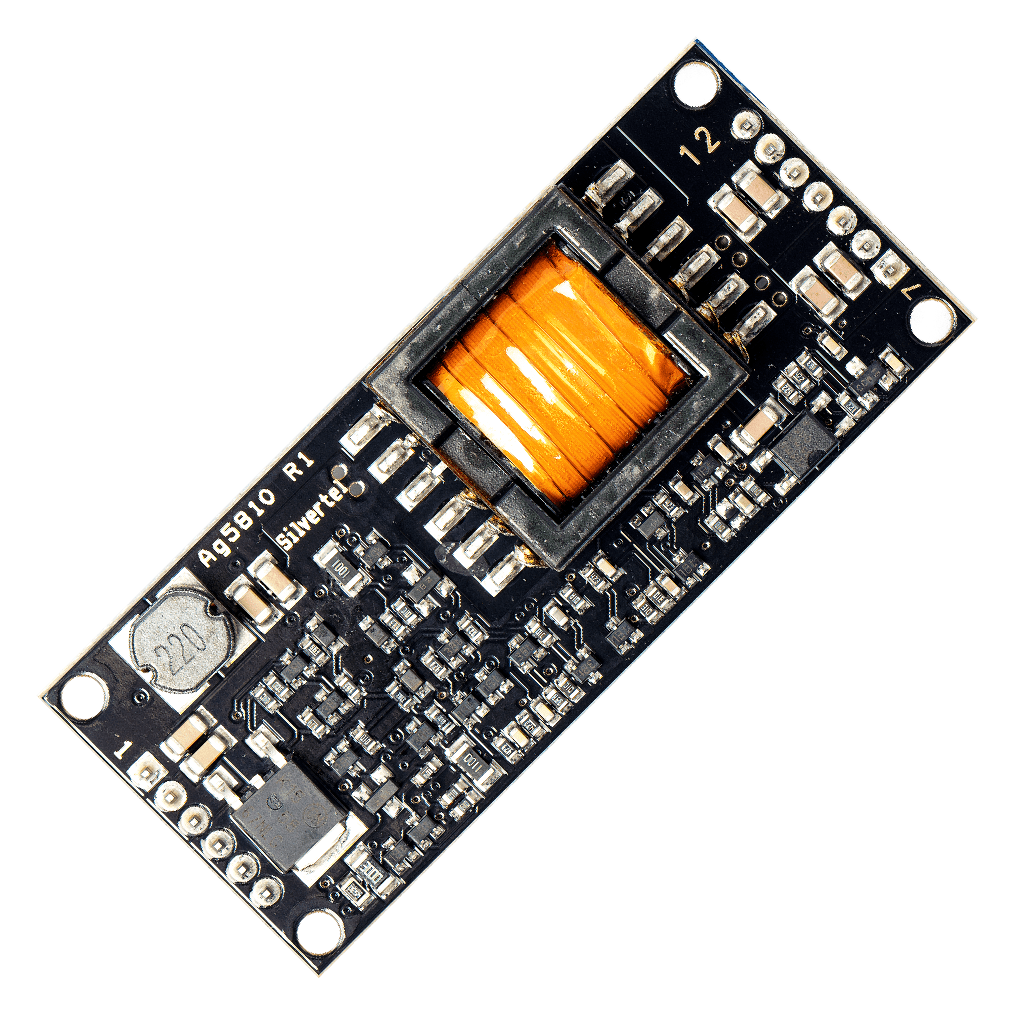

The Ag5810 is an IEEE802.3bt Type 4 Power over Ethernet module that can deliver up to 60 Watts of output power. Suitable for applications such as WiMAX access points, PTZ cameras,notebook computers, IP cameras, LED lighting, intelligent displays and thin client terminals.

The Ag5810 extracts power from an IEEE802.3bt Power Sourcing Equipment (PSE) over an Ethernet cable. Conforming to the IEEE802.3bt standard for signature recognition with class programming fixed to class 7. It has been designed to work with IEEE802.3bt PSE’s and existing high power PSE’s from leading manufacturers.

The high-efficiency DC/DC converter operates over a wide input voltage range and provides a regulated low ripple and low noise output. The DC/DC converter also has built-in overload, thermal and short-circuit output protection.

Features


  • Smallest 60W ‘bt’ solution in the world

  • DIL - 70mm(L) x 30mm(W) x 16mm(H)

  • Power received on all 4 pairs - Type 4, Class 7

  • Overload, thermal & short-circuit protection

  • Very low power standby mode

  • Wide input voltage range (37-57V)

  • 12V or 24 V output

  • 88% efficient isolated DC/DC converter

  • Minimal low-cost external components required

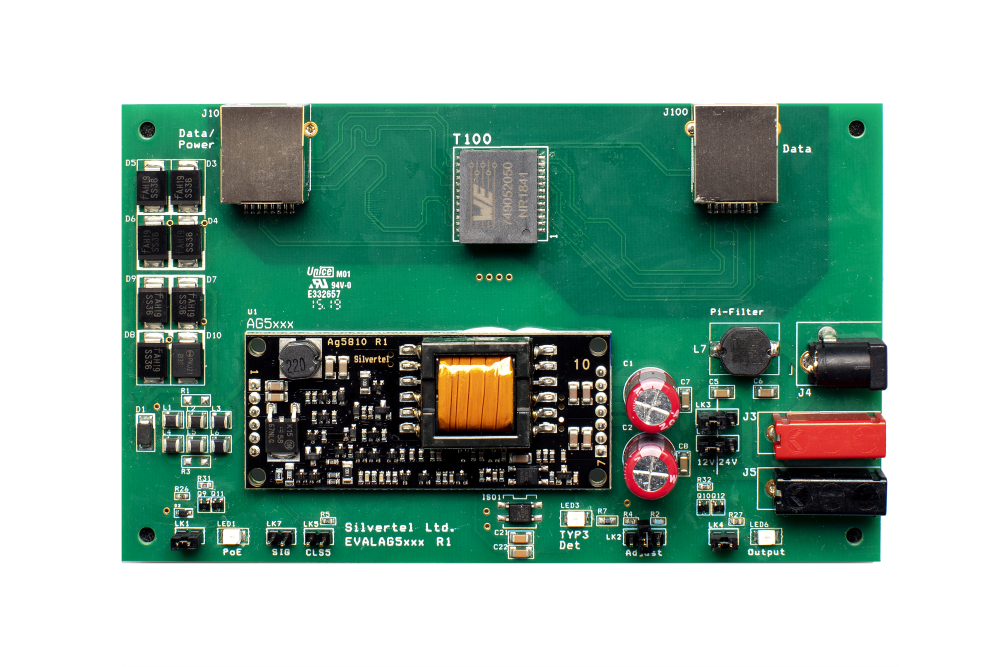

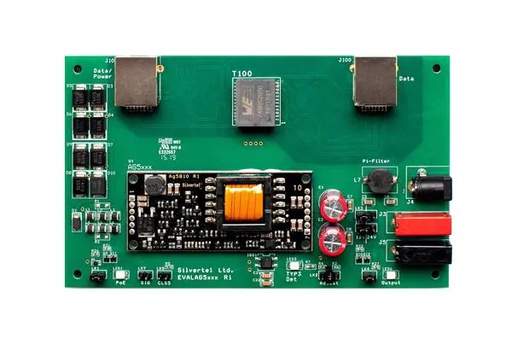

Evaluation Kit

The EvalAg5810 is intended for testing and evaluation of the performance of the Ag5810 IEEE802.3bt 4-Pair high power POE PD module. This evaluation board will work with suitable IEEE802.3bt Power Sourcing Equipment (PSE) that are capable of providing power over the spare pair and the data pair, such as the Ag6800 high-power PoE PD module.  Please use the links provided to buy boards or download the user manual.

Applications

Specifications for PD Module, 60W, IEEE802.3bt Compliant, 12V/24V

Role PD
Compliance IEEE 802.3bt-wrong
Output Voltage 12V/24V
Temperature Range Normal
Power module package DIL
Build in Bridge No
Channel Single Channel
Power isolution 1500Vdc
Protection Thermal, Overload and short-circuit
