Ag6100S PSE Module, 1-Channel, IEEE802.3af & at
The Ag6100 is a single channel, small package SIL PSE module, designed to inject power into conventional twisted pair Category 5 Ethernet cables. Ag6100S modules are compatible with IEEE 802.3af POE and 802.3at PoE+ devices and PD modules (e.g. Ag9800 or Ag5300).
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
The Ag6100 is a single channel, small package SIL PSE module, designed to inject power into conventional twisted-pair Category 5 Ethernet cables. Ag6100S modules are compatible with IEEE 802.3af POE and 802.3at PoE+ devices and PD modules (e.g. Ag9800 or Ag5300). Ag6110 is compatible with POE Ultra devices and modules (e.g. Ag5500). Ag6100S will operate as standard across the Industrial Temperature range (-40C to +85C). Ag6100 requires a 48 – 57V DC input, frequently provided by the Ag7100 DC-DC converter module.
IEEE802.3af & at compatible
Small SIL Footprint- SIL - 50mm(L)x8mm(W)x14mm(H)
Over Current & Short Circuit Protection
Signature & Class recognition
39W per channel
Hardware and Software modes

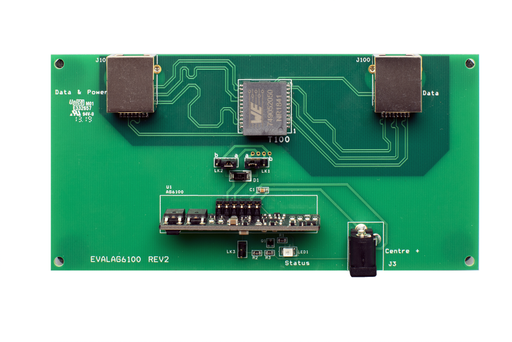

Ag6100 and Ag6110 Evaluation Boards
This is Silvertels standard IEEE802.3af, IEEE802.3at and POE Ultra PSE module evaluation board, for testing and evaluation of Silvertel Single Channel PSE modules. It is suitable for use at 10M/100M/1G and 10G Ethernet (HDBaseT compatible) rates, with the following products – Ag6100S and Ag6110. It is designed to work with Powered Devices (PDs) (e.g. Ag9700 or Ag5200) that extract power from either the spare pair and or the data pair. Please use the link provided to order and request specific evaluation boards or download the User Manual.
Specifications for Ag6100S PSE Module, 1-Channel, IEEE802.3af & at
|Temperature Range||Industrial Temperature with Temp protection|
|Power module package||SIL|
|Protection||Overcurrent & short circuit|
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
The Ag6100 is a single output Power Sourcing Equipment (PSE) module designed for use in IEEE802.3at Type 1 (af) and Type 2 Power over Ethernet (PoE) applications.
The Ag6100 is capable of delivering up to 39W and is aimed at applications requiring PSE functionality such as CCTV DVR, home networking and industrial Ethernet.
Ag6100 is a self-contained module, requiring just a few external components to provide a great deal of control and feedback over each Powered Device (PD) that is connected to the PSE.
