PSE Module, 1-Channel, IEEE802.3af & at compliant

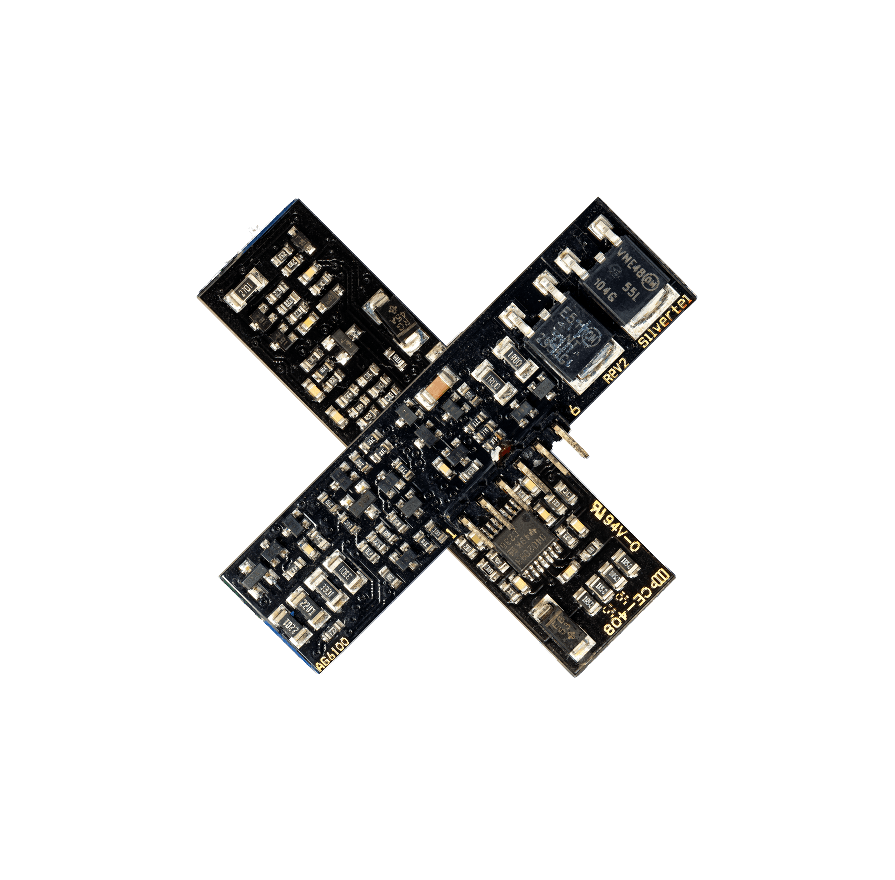

The Ag6100 is a single channel, small package SIL PSE module, designed to inject power into conventional twisted pair Category 5 Ethernet cables. Ag6100S modules are compatible with IEEE 802.3af POE and 802.3at PoE+ devices and PD modules (e.g. Ag9800 or Ag5300).

  • Role
  • Compliance
  • Output Voltage
  • Temperature Range
  • Power module package
  • Channel
  • Protection
  • Output Power

SG$ 33.00

This combination does not exist.

Lead Time : 20.0 weeks

Add to Cart Get Best Price

The Ag6100 is a single channel, small package SIL PSE module, designed to inject power into conventional twisted pair Category 5 Ethernet cables. Ag6100S modules are compatible with IEEE 802.3af POE and 802.3at PoE+ devices and PD modules (e.g. Ag9800 or Ag5300).

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Silvertel

Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality.


FIND OUT MORE

Overview

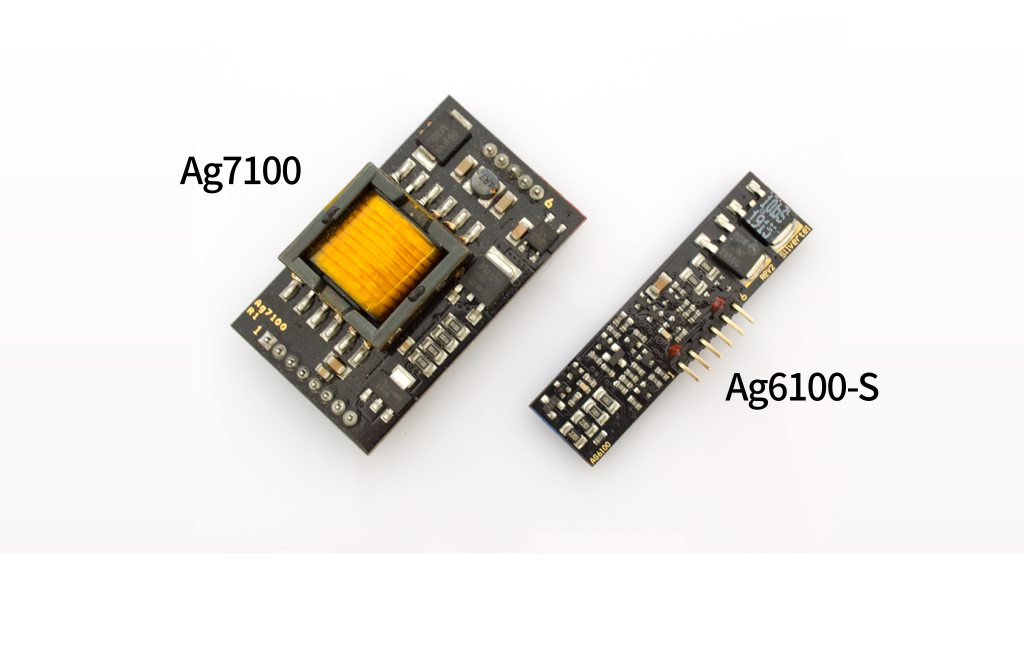

The Ag6100 is a single channel, small package SIL PSE module, designed to inject power into conventional twisted-pair Category 5 Ethernet cables. Ag6100S modules are compatible with IEEE 802.3af POE and 802.3at PoE+ devices and PD modules (e.g. Ag9800 or Ag5300). Ag6110 is compatible with POE Ultra devices and modules (e.g. Ag5500). Ag6100S will operate as standard across the Industrial Temperature range (-40C to +85C). Ag6100 requires a 48 – 57V DC input, frequently provided by the Ag7100 DC-DC converter module.

Features


  • 4 Channel

  • IEEE802.3af & at compatible

  • Small SIL Footprint- SIL - 50mm(L)x8mm(W)x14mm(H)

  • Over Current & Short Circuit Protection

  • Signature & Class recognition

  • 39W per channel

  • Hardware and Software modes

  • Industrial Temperature

  • Simple integration

Evaluation Kit

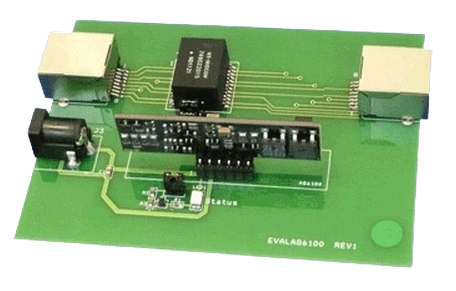

Ag6100 and Ag6110 Evaluation Boards


This is Silvertels standard IEEE802.3af, IEEE802.3at and POE Ultra PSE module evaluation board, for testing and evaluation of Silvertel Single Channel PSE modules. It is suitable for use at 10M/100M/1G and 10G Ethernet (HDBaseT compatible) rates, with the following products – Ag6100S and Ag6110. It is designed to work with Powered Devices (PDs) (e.g. Ag9700 or Ag5200) that extract power from either the spare pair and or the data pair. Please use the link provided to order and request specific evaluation boards or download the User Manual.

Specifications for PSE Module, 1-Channel, IEEE802.3af & at compliant

Role PSE
Compliance IEEE802.3af/at
Output Voltage 48V/57V
Temperature Range Industrial Temperature with Temp protection
Power module package SIL
Channel Single Channel
Protection Overcurrent & short circuit
Output Power 39W
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


The Ag6100 is a single output Power Sourcing Equipment (PSE) module designed for use in IEEE802.3at Type 1 (af) and Type 2 Power over Ethernet (PoE) applications.

The Ag6100 is capable of delivering up to 39W and is aimed at applications requiring PSE functionality such as CCTV DVR, home networking and industrial Ethernet.

Ag6100 is a self-contained module, requiring just a few external components to provide a great deal of control and feedback over each Powered Device (PD) that is connected to the PSE.
