Ag6400S 4-Channel, IEEE802.3af & at

PSE Module, 4-Channel, IEEE802.3af & at compliant, SIL.

Role
Compliance
Output Voltage
Temperature Range
Power module package
Channel
Protection
Output Power

SG$ 32.78

This combination does not exist.

Lead Time : 40.0 weeks

Add to Cart Get Best Price

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Silvertel

Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality. Qi Wireless Power modules - transmit and receive. , Battery charger modules for Lithium Ion (Li-Ion), Lithium Polymer (Li-Po) and sealed Lead Acid (SLA) batteries. Analog Telecom modules - SLIC and DAA (FXS and FXO).

FIND OUT MORE

Overview

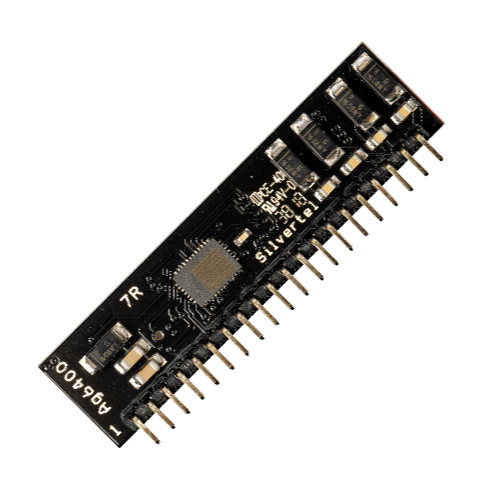

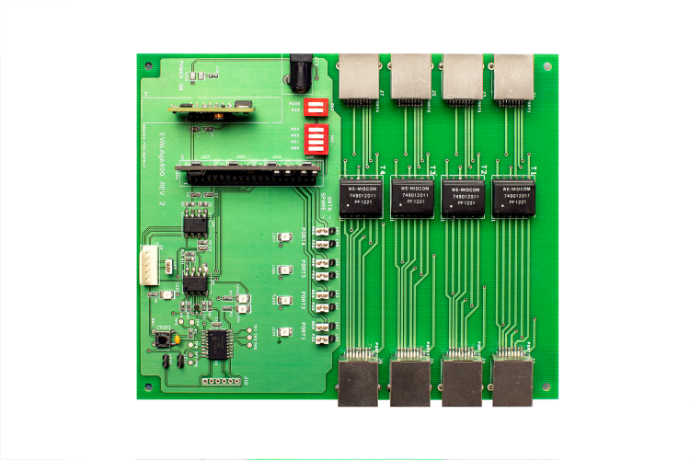

The Ag6400 is a 4 channel Power Sourcing Equipment (PSE) module designed to inject up to 39W of power from each of up to four output ports into conventional twisted pair Category 5 Ethernet cable. These modules provide exceptional efficiency while maintaining compatibility with IEEE 802.3af and 802.3at Power-over-Ethernet (PoE) devices.

Features

4 Channel
IEEE802.3af & at compatible
Small SIL Footprint- SIL - 50mm(L)x8mm(W)x14mm(H)
Over Current & Short Circuit Protection
Signature & Class recognition
30W per channel
Hardware and Software modes
Industrial Temperature
Simple integration

Specifications for Ag6400S 4-Channel, IEEE802.3af & at

Role	PSE
Compliance	IEEE802.3af/at
Output Voltage	48V/57V
Temperature Range	Industrial Temperature with Temp protection
Power module package	SIL
Channel	Four Channel
Protection	Over Current & Short Circuit
Output Power	19~39W/Channel

Ag6400 Datasheet

Ag6400 Short form

Application Notes

EMI Test Probe

ANX-POE-Protection

ANX-1000BASE-T-CONNECTIONS

PoE PHY Protection

POE Thermal Consideration
POE Output Filtering

explain the requirement of the isolation barrier with PoE

ANX-POE-Power Available power over PoE

POE AT Detect
PoE Data Termination
ANX POE External Back-up
Ag6400 Power Supply
Ag6400 Start-up Circuit
ANX POE External Supply Gating

PoE Start-up Load
POE with HDBaseT

External Class Programming
ANX POE High Power Supply Gating

Data Link Layer Classification

Description

The Ag6400 is a quad Power Sourcing Equipment (PSE) module designed for use in IEEE802.3at Type 1 and Type 2 Power over Ethernet (PoE) applications. Capable of providing up to 30W per port, Ag6400 is aimed at applications requiring PSE functionality such as IP switches, routers and hubs, CCTV DVR, home networking and industrial ethernet. Ag6400 is a self-contained module, requiring just a few external components to provide a great deal of control and feedback over each Powered Device (PD) that is connected to the PSE.
