Ag6400S 4-Channel, IEEE802.3af & at

PSE Module, 4-Channel, IEEE802.3af & at compliant, SIL.

This product is no longer available.

PSE Module, 4-Channel, IEEE802.3af & at compliant, SIL.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality. Qi Wireless Power modules - transmit and receive. , Battery charger modules for Lithium Ion (Li-Ion), Lithium Polymer (Li-Po) and sealed Lead Acid (SLA) batteries. Analog Telecom modules - SLIC and DAA (FXS and FXO).

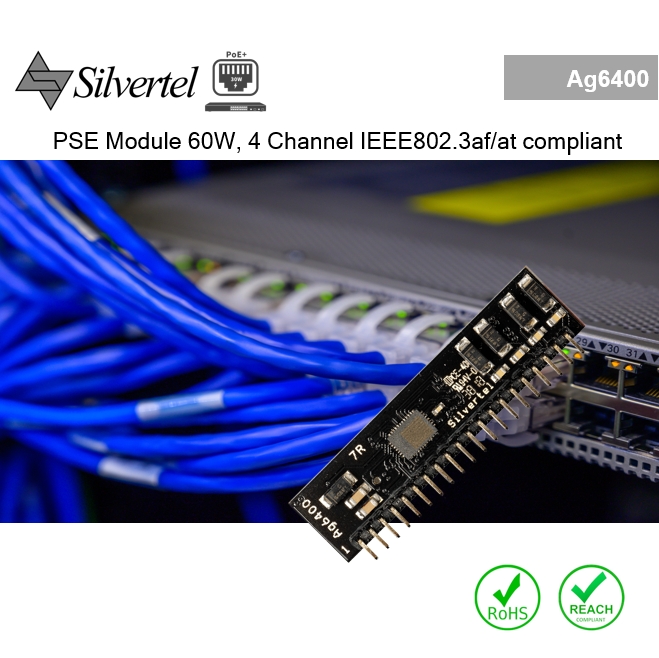

The Ag6400 is a 4 channel Power Sourcing Equipment (PSE) module designed to inject up to 39W of power from each of up to four output ports into conventional twisted pair Category 5 Ethernet cable. These modules provide exceptional efficiency while maintaining compatibility with IEEE 802.3af and 802.3at Power-over-Ethernet (PoE) devices.


  • 4 Channel

  • IEEE802.3af & at compatible

  • Small SIL Footprint- SIL - 50mm(L)x8mm(W)x14mm(H)

  • Over Current & Short Circuit Protection

  • Signature & Class recognition

  • 30W per channel

  • Hardware and Software modes

  • Industrial Temperature

  • Simple integration

Specifications for Ag6400S 4-Channel, IEEE802.3af & at

Role PSE
Compliance IEEE802.3af/at
Output Voltage 48V/57V
Temperature Range Industrial Temperature with Temp protection
Power module package SIL
Channel Four Channel
Protection Over Current & Short Circuit
Output Power 19~39W/Channel
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


The Ag6400 is a quad Power Sourcing Equipment (PSE) module designed for use in IEEE802.3at Type 1 and Type 2 Power over Ethernet (PoE) applications. Capable of providing up to 30W per port, Ag6400 is aimed at applications requiring PSE functionality such as IP switches, routers and hubs, CCTV DVR, home networking and industrial ethernet. Ag6400 is a self-contained module, requiring just a few external components to provide a great deal of control and feedback over each Powered Device (PD) that is connected to the PSE.


  • Compliant with IEEE802.3at Type 1 & Type 2

  • Small SIL package size - 56mm (L) x 14mm (H)

  • Low cost

  • Four independent PSE outputs, capable of up to 30W each

  • Minimal (low cost) external components required

  • Programmable current limits

  • Per Port Current/Voltage monitoring
