Ag6800 PSE Module, High Power, IEEE802.3bt compliant, complements Ag6800

PSE Module, High Power, IEEE802.3bt compliant, complements Ag5800, DIL.

  • Role
  • Compliance
  • Output Voltage
  • Temperature Range
  • Power module package
  • Channel
  • Protection
  • Output Power

SG$ 25.80

This combination does not exist.

Lead Time : 20.0 weeks

Add to Cart Get Best Price

PSE Module, High Power, IEEE802.3bt compliant, complements Ag5800, DIL.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality. Qi Wireless Power modules - transmit and receive. , Battery charger modules for Lithium Ion (Li-Ion), Lithium Polymer (Li-Po) and sealed Lead Acid (SLA) batteries. Analog Telecom modules - SLIC and DAA (FXS and FXO)

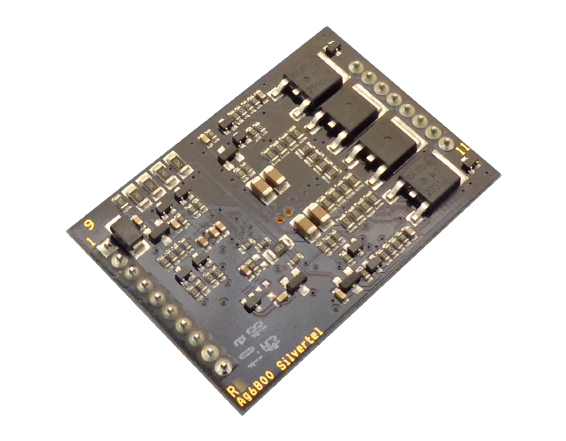

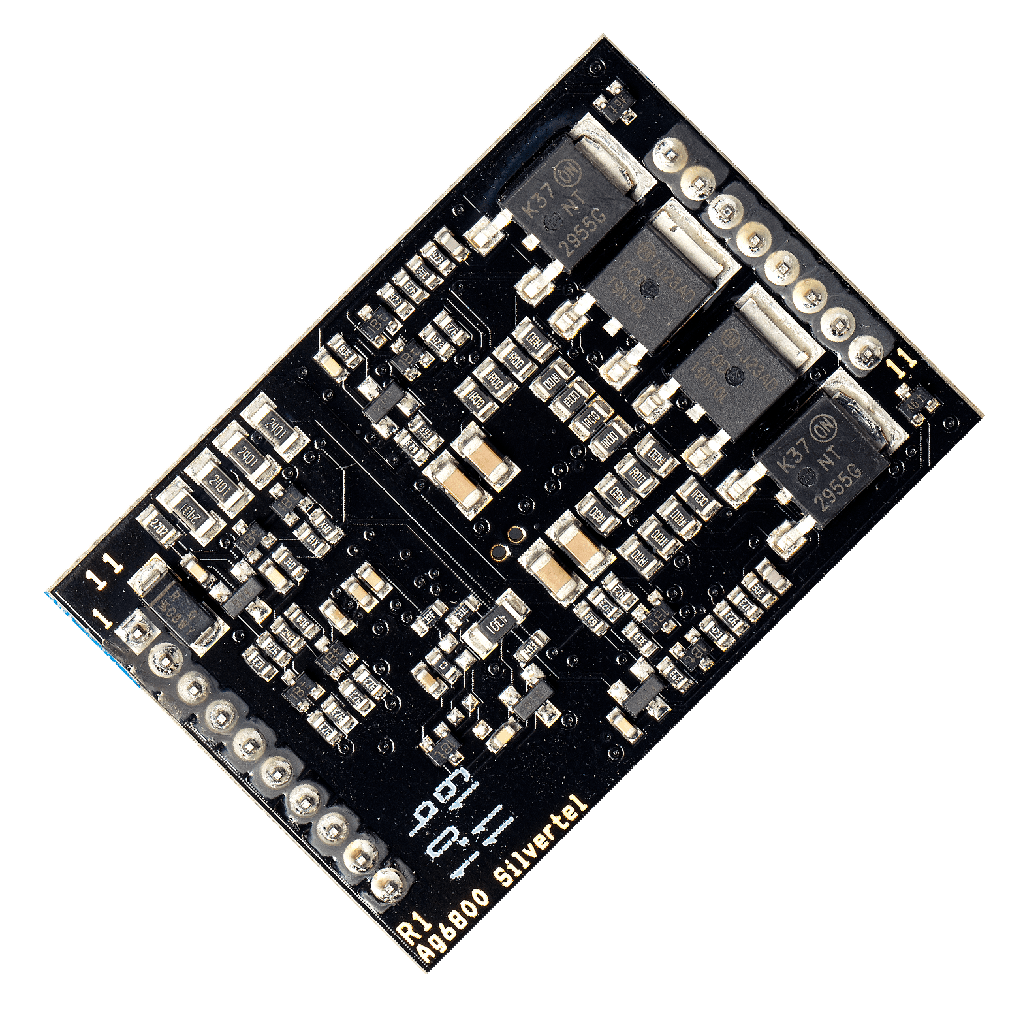

The Ag6800 is a single-channel, high-power PSE module designed to be compliant with the IEEE802.3bt Power over Ethernet (PoE) applications. It is capable of delivering up to 97W and is aimed at higher power applications. It is complemented by the Ag5800 PD module for POE and and PoH applications.

IEEE802.3af & at compatible


  • IEEE802.3af & at compatible

  • Cost Optimised 97W POE PSE

  • IEEE802.3bt compliant module

  • Power out on all 4 pairs

  • 57V out for maximum efficiency

  • Compact DIL package – 51mm(L) x 35mm(W) x 7mm (H)

  • Very high efficiency (99%)

  • Overload and short-circuit protection

  • IEEE802.3af & 802.3at backward compatible

  • Industrial Temperature

  • Minimal external components

  • Simple integration

Specifications for Ag6800 PSE Module, High Power, IEEE802.3bt compliant, complements Ag6800

Role PSE
Compliance IEEE 802.3af/at/bt
Output Voltage 57V
Temperature Range Industrial Temperature with Temp protection
Power module package DIL
Channel Single Channel
Protection Over Current & Short Circuit
Output Power 97W
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


The Ag6800 is an IEEE802.3bt compliant Power Sourcing Equipment (PSE) module which is also designed to be used with lower power IEEE802.3af, IEEE802.3at power devices and compatible with legacy protocols such as PoH and UPoE. The Ag6800 is a complete, easy to implement solution for adding POE functionality to a wide variety of applications requiring higher power up to 97W such as lighting systems, digital signage, Point-of-Sale systems, LCD TVs, computer monitors and video projectors. Ag6800 is a self-contained module, requiring just a few external components to provide the complete control and feedback to the Powered Device (PD) that is connected to the PSE.


Type 4 PSE Compliant with IEEE802.3bt

Backward compatible to IEEE802.3at Type 1(af) & Type 2

Small DIL package size – 51mm (L) x 35mm (W) x 7mm (H)

High Efficiency (99%)

Low cost

Output power up to 97W

Minimal (low cost) external components required

Over-current and short circuit protection

Silvertel “design-in” assistance
