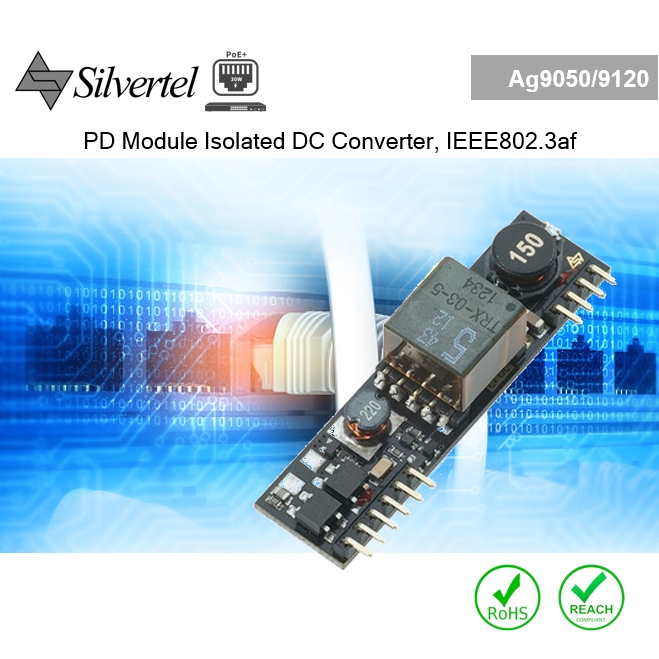

Ag9120-S PD Module, Isolated DC-DC converter, IEEE802.3af compliant, 5V or 12V Output

Manufacturing Company :

Ag9120-S PD Module, Isolated DC-DC converter, IEEE802.3af compliant, 5V or 12V Output

The Silvertel Ag9000-S series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard.

Role
Compliance
Output Voltage
Temperature Range
Power module package
Build in Bridge
Protection
Input Voltage

SG$ 18.69

This combination does not exist.

Lead Time : 20.0 weeks

Add to Cart Get Best Price

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Silvertel

Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality. Qi Wireless Power modules - transmit and receive. , Battery charger modules for Lithium Ion (Li-Ion), Lithium Polymer (Li-Po) and sealed Lead Acid (SLA) batteries. Analog Telecom modules - SLIC and DAA (FXS and FXO).

FIND OUT MORE

Overview

The Silvertel Ag9000-S series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables and the Ag9000-S series have two pairs of power inputs pins: - VA1&2 and VB1&2 to accommodate this.

The Ag9000-S signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The Ag9000 is compatible with Class 0 to Class 3 equipment. The high efficiency DC/DC converter operates over a wide input voltage range and provides a regulated low ripple and low noise output. The DC/DC converter also has built-in overload and short-circuit output protection.

Features

IEEE802.3af compliant
Small SIL package size - 56mm (L) x 14mm (H)
Low output ripple and noise
Input voltage range 36V to 60V
Only one low cost external decoupling capacitor required
Overload and short-circuit protection
Adjustable Output
High efficiency DC/DC converter
1500V isolation (input to output)
Silver Telecom design-in assistance

Specifications for Ag9120-S PD Module, Isolated DC-DC converter, IEEE802.3af compliant, 5V or 12V Output

Output Voltage	5V or 12V
Role	PD
Compliance	IEEE 802.3af 13W
Temperature Range	Industrial Temperature with Temp protection
Power module package	SIL
Build in Bridge	No
Protection	Overload and short-circuit
Input Voltage	36~57V

Ag9050 Datasheet

Ag9000 Datasheet

Application Notes

POE Selection Guide
Ag9000 Dual Setup
Ag9000 Series Outputs
Ag9000 Series Outputs

EMI Test Probe

ANX-POE-Protection

ANX-1000BASE-T-CONNECTIONS

PoE PHY Protection

POE Thermal Consideration
POE Output Filtering

explain the requirement of the isolation barrier with PoE

ANX-POE-Power Available power over PoE

POE AT Detect
PoE Data Termination
ANX POE External Back-up
Ag6400 Power Supply
Ag6400 Start-up Circuit
ANX POE External Supply Gating

PoE Start-up Load
POE with HDBaseT

External Class Programming
ANX POE High Power Supply Gating

Data Link Layer Classification

Description

The Ag9050-SI is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables and the Ag9050-SI series have two pairs of power inputs pins: - VA1&2 and VB1&2 to accommodate this, see Figure 1. The Ag9050-SI signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The Ag9050-SI is compatible with Class 0 to Class 3 equipment. The high efficiency DC/DC converter operates over a wide input voltage range and provides a regulated low ripple and low noise output. The DC/DC converter also has built-in overload and short-circuit output protection.

Features
