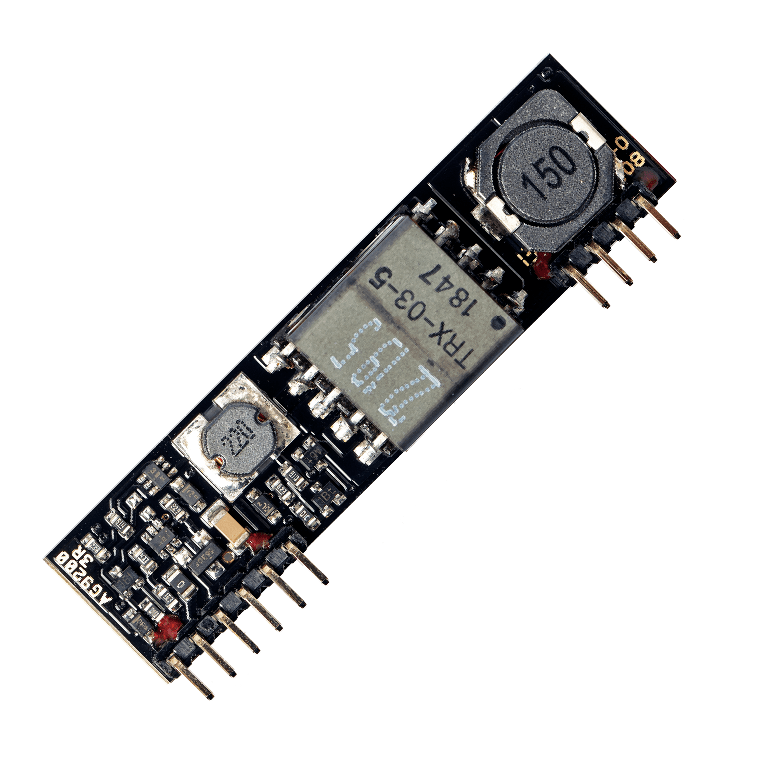

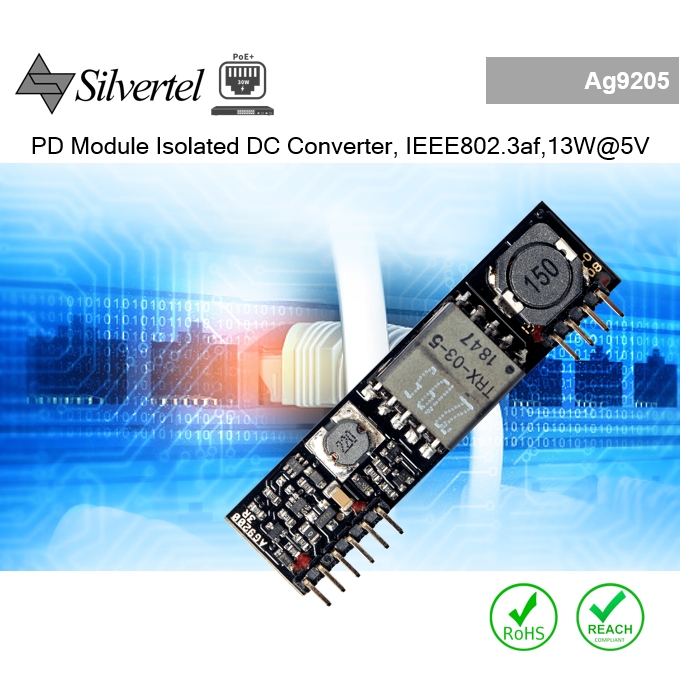

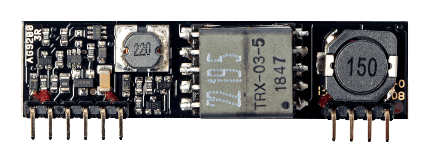

Ag9205-S PD Module, High Efficiency, Isolated DC-DC Converter

PD Module, High efficiency, Isolated DC-DC converter, IEEE802.3af compliant, 13W@5V, SIL.

  • Output Voltage
  • Role
  • Compliance
  • Temperature Range
  • Power module package
  • Build in Bridge
  • Power isolution
  • Protection
  • Input Voltage

SG$ 14.16

This combination does not exist.

Lead Time : 20.0 weeks

Add to Cart Get Best Price

PD Module, High efficiency, Isolated DC-DC converter, IEEE802.3af compliant, 13W@5V, SIL.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Silvertel

Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality. Qi Wireless Power modules - transmit and receive. , Battery charger modules for Lithium Ion (Li-Ion), Lithium Polymer (Li-Po) and sealed Lead Acid (SLA) batteries. Analog Telecom modules - SLIC and DAA (FXS and FXO).


FIND OUT MORE

Overview

The Ag9205 is a PoE module designed for higher efficiency than standard Silvertel products. The module extracts power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power over Ethernet (PoE) standard. This is a total solution, including a 1.5kV isolation barrier between the input and output. The Ag9205S has been specifically designed to give more power at 5V output voltage than standard Ag9705 series parts.

Features

  • IEEE802.3af compliant

  • Small Package Size – 56mm(L) x 18mm(W) x 14mm(H) Highly efficient DC/DC converter (up to 88% ~ 5V 13W)

  • Low output ripple and noise

  • Wide Input voltage range

  • Overload and short-circuit protection

  • Adjustable Output

  • 1500V isolation (input to output)

  • Simple integration

Specifications for Ag9205-S PD Module, High Efficiency, Isolated DC-DC Converter

Output Voltage 5V
Role PD
Compliance IEEE 802.3af 13W
Temperature Range Normal
Power module package SIL
Build in Bridge Yes
Power isolution 1500Vdc
Protection Overload and short-circuit
Input Voltage 36~57V
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Description

The Ag9200 series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. The Ag9200 signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The Ag9200 is compatible with Class 0 to Class 3 equipment. The high efficiency DC/DC converter operates over a wide input voltage range and provides a regulated low ripple and low noise output. The DC/DC converter also has builtin overload and short-circuit output protection.

Features

  • IEEE802.3af compliant

  • Small SIL package size - 56mm (L) x 14mm (H)

  • Low output ripple and noise

  • Input voltage range 36V to 57V

  • Minimal (low cost) external components required

  • Overload and short-circuit protection

  • Adjustable Output

  • Higher efficiency DC/DC converter

  • 1500V isolation (input to output)

  • Silvertel “design-in” assistance
