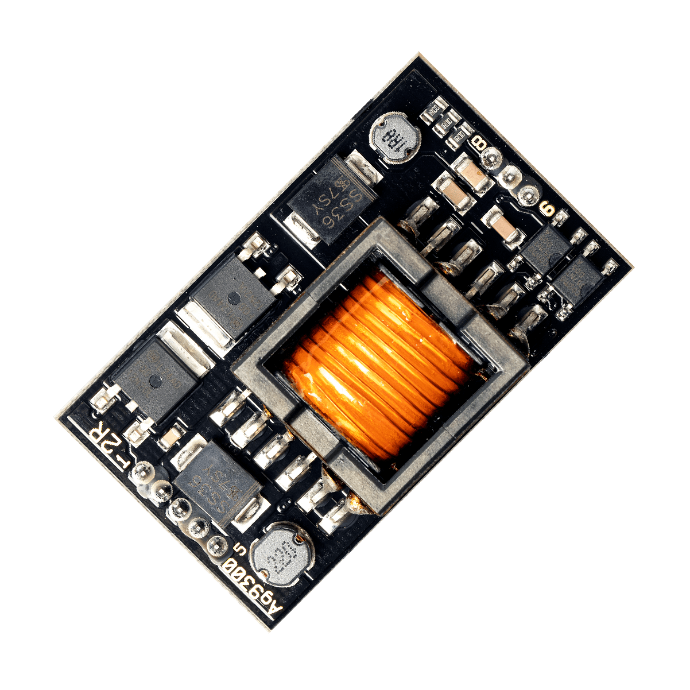

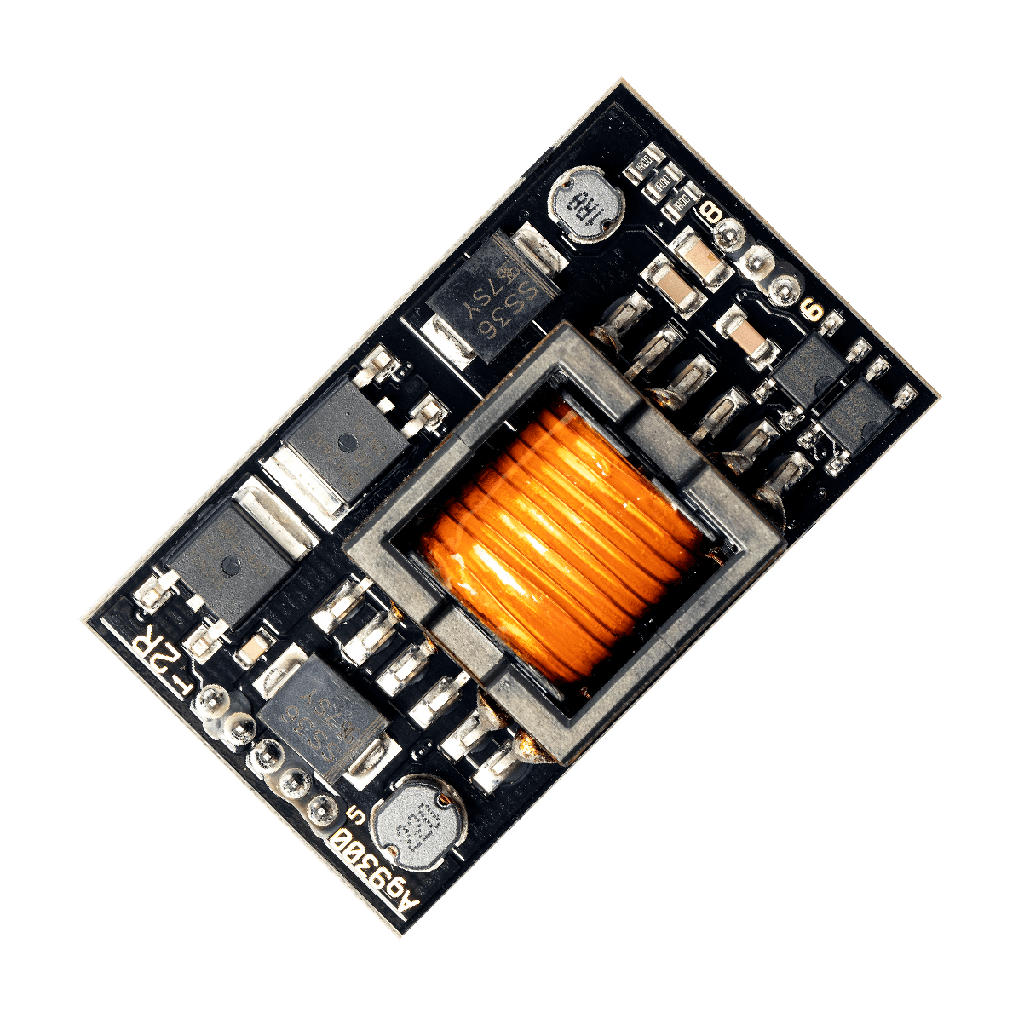

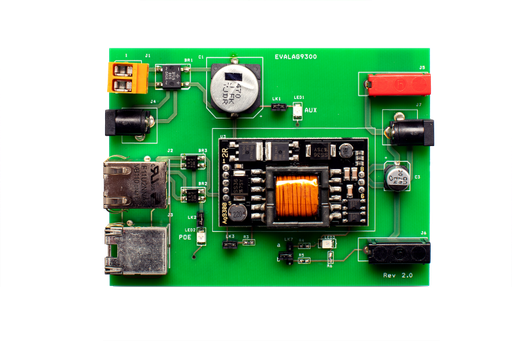

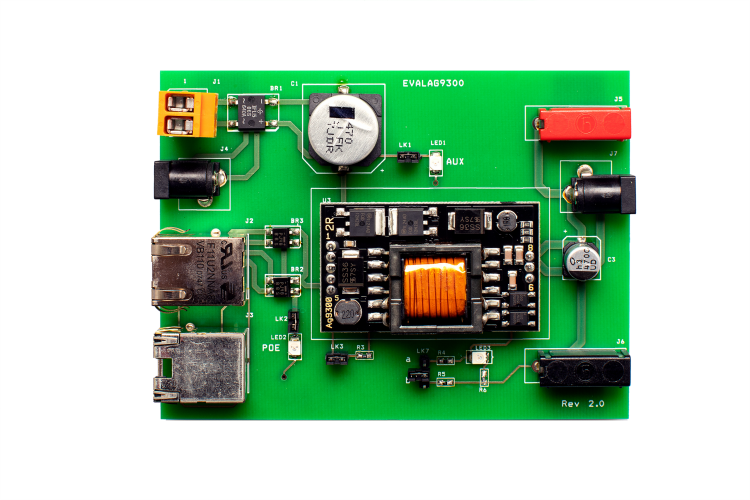

Ag9312 PD Module, Triple input, Isolated DC-DC converter,

PD Module, Triple input, Isolated DC-DC converter, IEEE802.3af compliant, 12-48Vdc & 24Vac, 12V out, DIL. 24Vac, 12V out, DIL.

This product is no longer available.


PD Module, Triple input, Isolated DC-DC converter, IEEE802.3af compliant, 12-48Vdc & 24Vac, 12V out, DIL.
24Vac, 12V out, DIL.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Silvertel

Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality. Qi Wireless Power modules - transmit and receive. , Battery charger modules for Lithium Ion (Li-Ion), Lithium Polymer (Li-Po) and sealed Lead Acid (SLA) batteries. Analog Telecom modules - SLIC and DAA (FXS and FXO).


FIND OUT MORE

Overview

The Ag9312 and Ag9330 modules are ideal for Security Applications such as cameras where standard AC and DC supplies are used as a backup or as an installation option. The Ag9312 Power-over-Ethernet(PoE) PD module is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af PoE standard. The Ag9330 PoE module conforms to the IEEE 802.3at 30W standard. In addition to the POE input the Ag9300 family of modules also provides an auxiliary input that will accept a DC voltage between 12V and 48V or a comparable AC voltage (after external rectification).


Features

  • PSU Module for POE, 12Vdc and 24Vac

  • POE input voltage 36Vdc to 57Vdc

  •  DC input voltage 12Vdc to 48Vdc

  •  AC input voltage 18Vac to 30Vac

  • IEEE802.3af compliant

  • Small Dual In-Line (DIL) package size – 50.6mm (L) x 30mm (W)

  • Overload and short-circuit protection

  • Adjustable Output

  • Thermal Cut Off

  • Single High-efficiency DC/DC converter

  • 1500Vdc isolation (input to output)

  • Silvertel “design-in” assistance


Specifications for Ag9312 PD Module, Triple input, Isolated DC-DC converter,

Role PD
Compliance IEEE 802.3af 13W
Output Voltage 12V and Adjustable
Temperature Range Normal
Power module package DIL
Build in Bridge No
Power isolution 1500Vdc
Protection Thermal, Overload and short-circuit
Output Power 12W
Input Voltage 12~48Vdc & 24Vac
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Description

The Ag9300 Power-over-Ethernet (PoE) module is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af PoE standard. With an additional auxiliary input that will accept a DC or AC voltage. This module is ideal for security cameras where 12Vdc or 24Vac is used. It can also be used with other security systems such as door access or sensors that have an input voltage of 12Vdc to 48Vdc or 18Vac to 30Vac. The Ag9300 signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The Ag9300 is compatible with Class 0 to Class 3 equipment. The high-efficiency DC/DC converter operates over a wide input voltage range with a low ripple and low noise output. The DC/DC converter also has built-in output overload, output short-circuit and over-temperature protection and provides a 1500Vdc (input to output) isolation barrier.


Features

  • PSU Module for POE, 12Vdc and 24Vac

  • POE input voltage 36Vdc to 57Vdc

  •  DC input voltage 12Vdc to 48Vdc

  •  AC input voltage 18Vac to 30Vac

  • IEEE802.3af compliant

  • Small Dual In-Line (DIL) package size – 50.6mm (L) x 30mm (W)

  • Overload and short-circuit protection

  • Adjustable Output

  • Thermal Cut Off

  • Single High-efficiency DC/DC converter

  • 1500Vdc isolation (input to output)

  • Silvertel “design-in” assistance
