Manufacturing Company :

EM300-ZLD Water leakage allocation

1 * 4000 mAh Li-SOCL2 battery (8000 mAh optional) NFC enabled IP67 rated Sensor Type: Cable Cable Length: 3.0m (Customizable)

Configuration Interface
Sensor
Waterproof
Class
Frequency band
Power type
Battery Capacity
Cable length

SG$ 130.90

This combination does not exist.

Lead Time : 3.0 weeks

Add to Cart Get Best Price

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Milesight

At Milesight IoT, we are passionate about the connectivity of “things” to the cloud. We leverage the value of the top trending technologies that transform the world we live in and are committed to our partners who share the same passion.

FIND OUT MORE

Overview

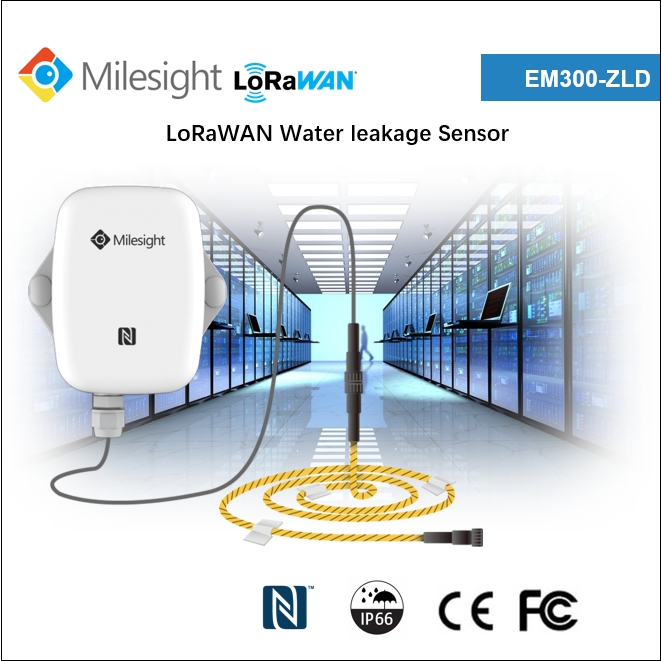

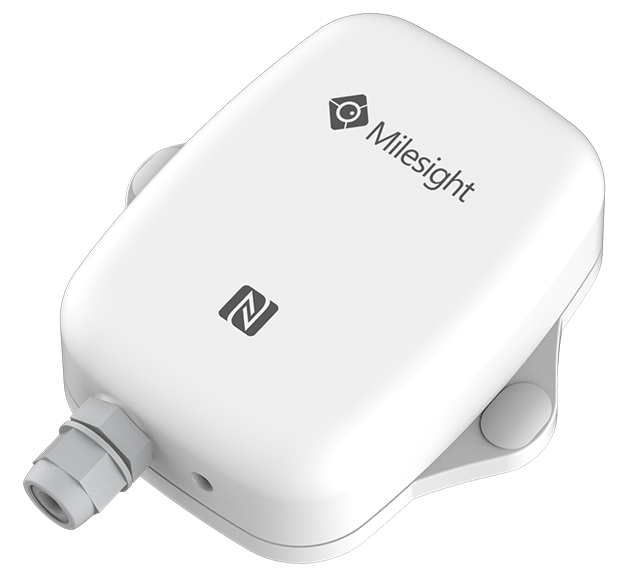

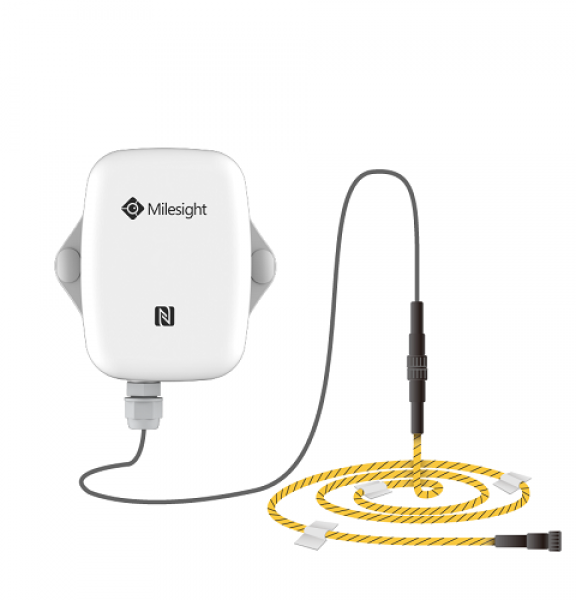

Spot or Zone Liquid Leak Detection Sensor

Prevent water damage through instant water leak detection, the EM300-SLD/ ZLD will help prevent potential water damage to your property or other assets.

Features

Liquid leak detection – Spot or Zone
Probe & rope type
Measures temperature between -40°C to 70°C
Measures humidity between 0% and 100% RH
IP67 water and dustproof
Compatible with industry-standard LoRaWAN® gateways (range of up to 15km in rural areas and 2km in urban)
5-10 years of battery life. Comes with 1 x easily replaceable 4000 mAh Li-SOCL2 Battery. Use 2 for 10 years of battery life.
Easy configuration through NFC from your mobile phone or PC
Remote monitoring through Milesight IoT Cloud (Android & iOS)

Specifications for EM300-ZLD Water leakage allocation

LoRaWAN
Configuration Interface	NFC
Uncategorized
Frequency band	AS923 or AU915 or EU868 or IN865 or KR920 or US915
Sensor	Temperature/Humidity/Water detect
Waterproof	IP67
Class	Class A
Power type	Battery
Battery Capacity	4000mAh
Cable length	3m

EM300-ZLD Datasheet
Release date: December 10, 2020
Download
EM300 Series User Guide
Release date: March 15, 2021
Download

LoRaWAN®	Frequency	CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
	Tx Power	17dBm (470) / 16dBm (868) / 20dBm (915)
	Sensitivity	-147dBm @300bps
	Mode	OTAA/ABP Class A
Leak Detection	Type	EM300-SLD: probe, spot detection
	Type	EM300-ZLD: rope, zone detection
	Cable Length	EM300-SLD: 1.5 m
		EM300-ZLD: 3 m
		(Optional cable lengths of hundred meters available)
Temperature	Measuring Range	-30°C to+70°C
	Accuracy	0~70°C: ±0.3°C
	Accuracy	-30~0°C: ±0.6°C
	Resolution	0.1°C
Humidity	Measuring Range	0%~100% RH
	Accuracy	±3% (10~90%RH)
	Accuracy	±5% (Other ranges)
	Resolution	0.10%
Physical Characteristics	Power Supply	18505 Li-SOCL12 4000mA ( 8000mA optional)
	Battery Life	≧ 5 years ( for 1 battery)
	Operating Temperature	-30°C to 70°C
	Ingress Protection	IP67
	Dimension	88 × 87 × 27 mm
	Mounting	Wall (screws or 3M adhesives)
