PD Module, High Efficiency, 30W, IEEE802.3at Compliant, 5V, 12V or 24V, Isolated DC-DC Converter, Over Temp. Protection, Ind. Temp. Range

The Ag5400 is now the Highest Efficiency IEEE 802.3AT Module in the world. The Ag5400 series Power-over-Ethernet (PoE+) modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE802.3 PoE standard, with full backwards compatibility with the IEEE802.3bt, IEEE802.3at and IEEE802.3af amendments.

  • Role
  • Compliance
  • Output Voltage
  • Temperature Range
  • Power module package
  • Build in Bridge
  • Power isolution
  • Protection

SG$ 19.83

This combination does not exist.

Lead Time : 20.0 weeks

Add to Cart Get Best Price

The Ag5400 is now the Highest Efficiency IEEE 802.3AT Module in the world. The Ag5400 series Power-over-Ethernet (PoE+) modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE802.3 PoE standard, with full backwards compatibility with the IEEE802.3bt, IEEE802.3at and IEEE802.3af amendments.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Silvertel

Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality.


FIND OUT MORE

Overview

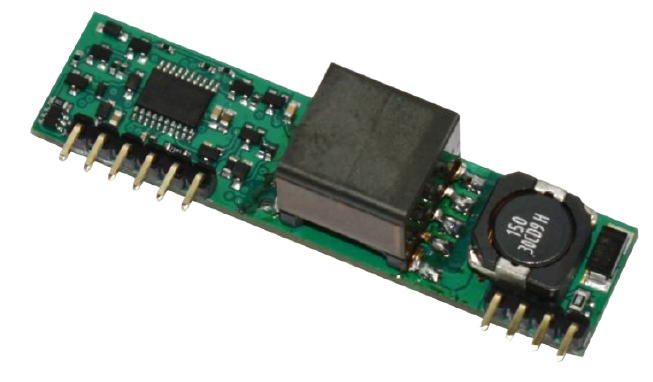

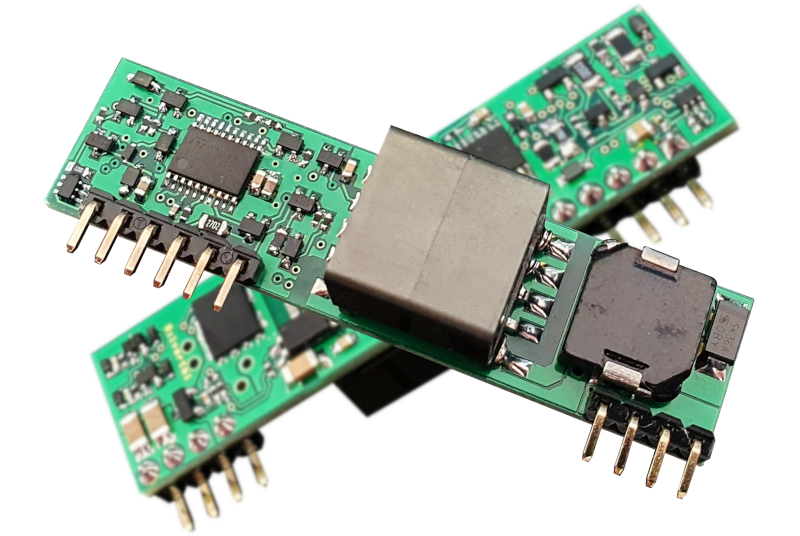

The Ag5400 is now the Highest Efficiency  IEEE 802.3AT Module in the world.


The Ag5400 series Power-over-Ethernet (PoE+) modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE802.3 PoE standard, with full backward compatibility with the IEEE802.3bt, IEEE802.3at and IEEE802.3af amendments.


The Ag5400 is pre-configured as a Type 2 Class 4 device, allowing the module to draw up to 30W of power from the PSE.


The high-efficiency DC/DC converter can achieve in excess of 93% efficiency and operates over a wide input voltage range with a low ripple and low noise output. The DC/DC converter also has built-in output overload, output short-circuit and overtemperature protection and provides a 1500Vdc (input to output) isolation barrier.

Features

  • Very high efficiency (>93%)

  • Environmentally friendly

  • SIL - 57mm(L)x18mm(W)x14mm(H)

  • Very low heat output

  • Low output ripple & noise

  • Overload, short-circuit, and thermal protection

  • Adjustable output voltage

  • Very few external low-cost components required

  • Industrial temperature range

  • Class 4 IEEE802.3 PD

  • IEEE802.3bt, IEEE802.3at, IEEE802.3af compliant

  • 1500Vdc isolation (input to output)

Evaluation Kit

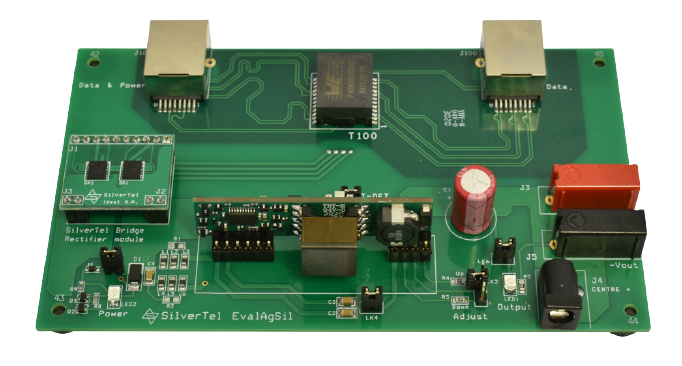

EvalAgSil is designed for testing and evaluation of the Ag5412 and other Silvertel SIL POE PD modules. Ag5412 provides a regulated 12V DC output. The evaluation board will work with Power Sourcing Equipment (PSE) that supplies power over the spare pair or data pairs. it can also be used in conjunction with Ag6120, Ag6100, or Ag6400 as compatible PSEs. Please use the links provided to order boards or download the user manual.

Specifications for PD Module, High Efficiency, 30W, IEEE802.3at Compliant, 5V, 12V or 24V, Isolated DC-DC Converter, Over Temp. Protection, Ind. Temp. Range

Output Voltage 5V or 12V or 24V
Role PD
Compliance IEEE 802.3at 30W
Temperature Range Normal
Power module package SIL
Build in Bridge No
Power isolution 1500Vdc
Protection Thermal, Overload and short-circuit
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Description

The Ag5400 series Power-over-Ethernet (PoE+) modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE802.3 PoE standard, with full backward compatibility with the IEEE802.3bt, IEEE802.3at and IEEE802.3af amendments. The Ag5400 is pre-configured as a Type 2 Class 4 device, allowing the module to draw up to 30W of power from the PSE, with nominal output voltages of 5V, 12V or 24V. The high-efficiency DC/DC converter can achieve in excess of 93% efficiency and operates over a wide input voltage range with a low ripple and low noise output. The DC/DC converter also has built-in output overload, output short-circuit, and overtemperature protection and provides a 1500Vdc (input to output) isolation barrier

Features

  • 30W (IEEE802.3at) output power

  • >93% efficient DC/DC converter

  • 5V, 12V and 24V variants available

  • Very low heat output

  • Low output ripple & noise

  • Overload, short-circuit, OVLO, TVS and thermal protection

  • Adjustable output voltage

  • Industrial temperature range

  • Minimal external components required

  • Class 4 IEEE802.3 PD

  • IEEE802.3bt, IEEE802.3at, IEEE802.3af compliant

  • Small Single In-Line (SIL) package size – 57.3mm (L) x 14mm (H)

  • 1500Vdc isolation (input to output)

  • Silvertel “design-in” assistance
