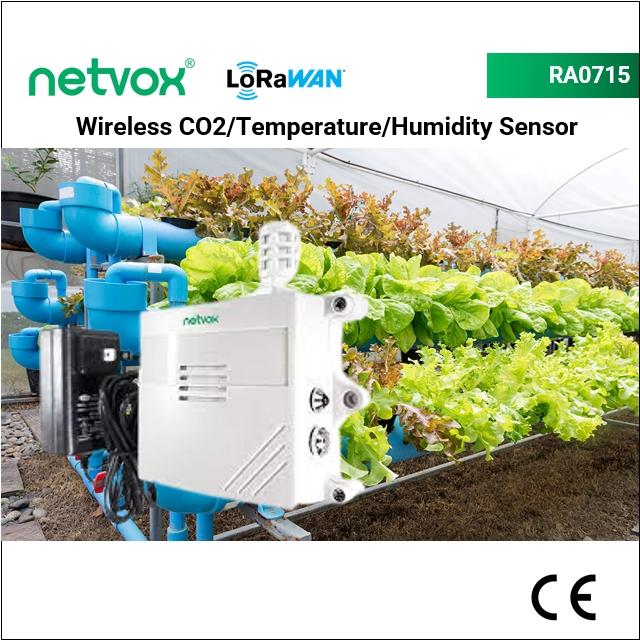

RA0715 Wireless CO2/Temperature/Humidity Sensor

Netvox RA0715 is designed to monitor temperature, humidity and CO2 for indoor air quality (IAQ) applications based on loRaWAN wireless connectivity. The communication is fully compatible with LoRaWAN™ Protocol (Class A).

  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Sensors

SG$ 364.92

This combination does not exist.

Lead Time : 5.0 weeks

Add to Cart Get Best Price

Netvox RA0715 is designed to monitor temperature, humidity and CO2 for indoor air quality (IAQ) applications based on loRaWAN wireless connectivity. The communication is fully compatible with LoRaWAN™ Protocol (Class A).

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

Netvox RA0715 is designed to monitor temperature, humidity and CO2 for indoor air quality (IAQ) applications based on loRaWAN wireless connectivity. The communication is fully compatible with LoRaWAN™ Protocol (Class A).


    Features

    • Wireless Range of 10km

    • LoRaWAN Class A compatible

    • Frequency Hopping Spread Spectrum (FHSS)

    • Improved Interference Immunity

    • Improved Power Management for Longer Battery Life

    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)

    • Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html

    • Over-The-Air Updates (Future)

    • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data

    • And Set Alerts Via SMS Text And Email (Optional)

    • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne

    • Uses SX1276 Wireless Communication Module

              Specifications for RA0715 Wireless CO2/Temperature/Humidity Sensor

              Frequency band AS923 or AU915 or EU868 or US915
              Class Class A
              Power type DC12V/1A
              Sleep Power consumption 80mA
              Rx Sensitivity -136dBm
              Sensor Measurement Range 0-5000ppm
              TX Power 16dBm
              Chipset SX1276
              Sensors CO2/Temperature/Humidity
              This is a preview of the recently viewed products by the user.
              Once the user has seen at least one product this snippet will be visible.

              Recently viewed Products


              RA0715 NETVOX LORAWAN WIRELESS CO2 TEMPERATURE HUMIDITY SENSOR

              Netvox RA0715 is designed to monitor temperature, humidity and CO2 for indoor air quality (IAQ) applications based on loRaWAN wireless connectivity. The communication is fully compatible with LoRaWAN™ Protocol (Class A).

              FEATURES:

              • Wireless Range of 10km
              • LoRaWAN Class A compatible
              • Frequency Hopping Spread Spectrum (FHSS)
              • Improved Interference Immunity
              • Improved Power Management for Longer Battery Life
              • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)
              • Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
              • Over-The-Air Updates (Future)
              • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data
              • And Set Alerts Via SMS Text And Email (Optional)
              • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
              • Uses SX1276 Wireless Communication Module

              Electric

              Power Supply Power Supply

              DC Power Supply, DC12V/1A

              Operating Current 1

              80mA (No RF Signal Emission)

              Operating Current 2

              120mA (With RF Signal Emission)


              Frequency

              TX Power

              19dBm±1dBm

              Rx Sensitivity

              -136dBm
              (LoRa，Spreading Factor=12，Bit Rate=293bps )
              -121dBm
              (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)

              Antenna Type

              Build-In Antenna

              Communication Range

              10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)

              Data Transfer Rate

              0.3kbps～50kbps

              Spread Technique

              LoRa/FSK

              Available Frequency

              AU915-928，AS923


              Physical

              Dimension

              111mm*86mm*42mm

              Working Temp

              -20°C ～ +55°C

              Storage Temp

              -40°C ～ +85°C

              Humidity Detecting Range

              ＜90%RH
