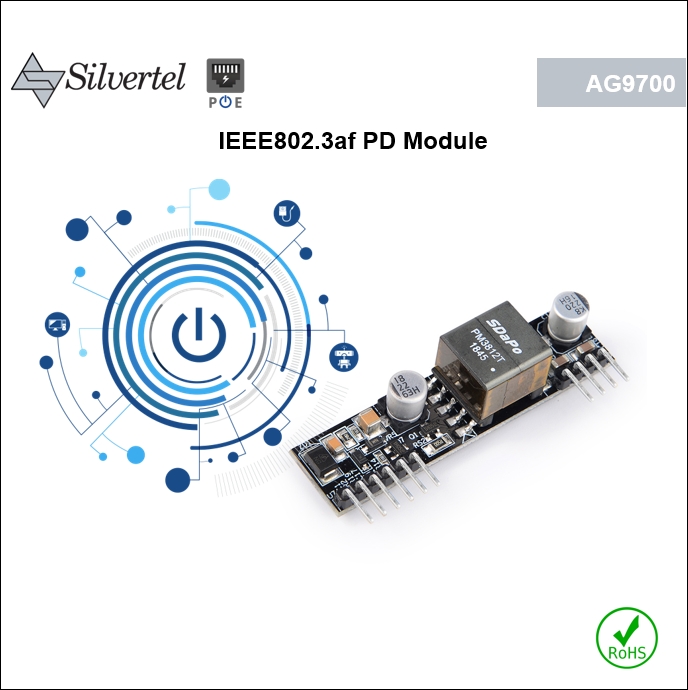

Ag9700 PD Module, Isolated DC-DC converter, Programmable Class., IEEE802.3af compliant, Includes Bridge Rect diodes, Ind Temp Range, Over Temp. protection
The Ag9700 series of PoE modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power over Ethernet (PoE) standard
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

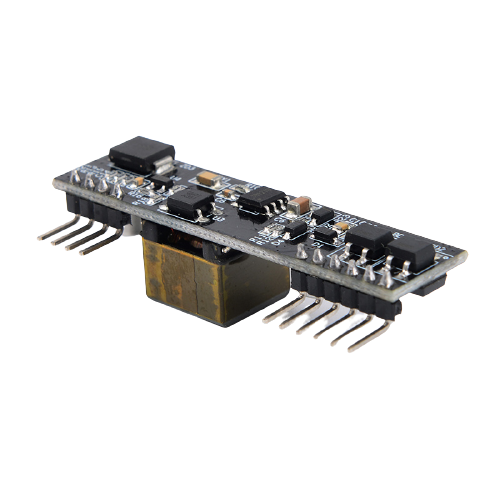

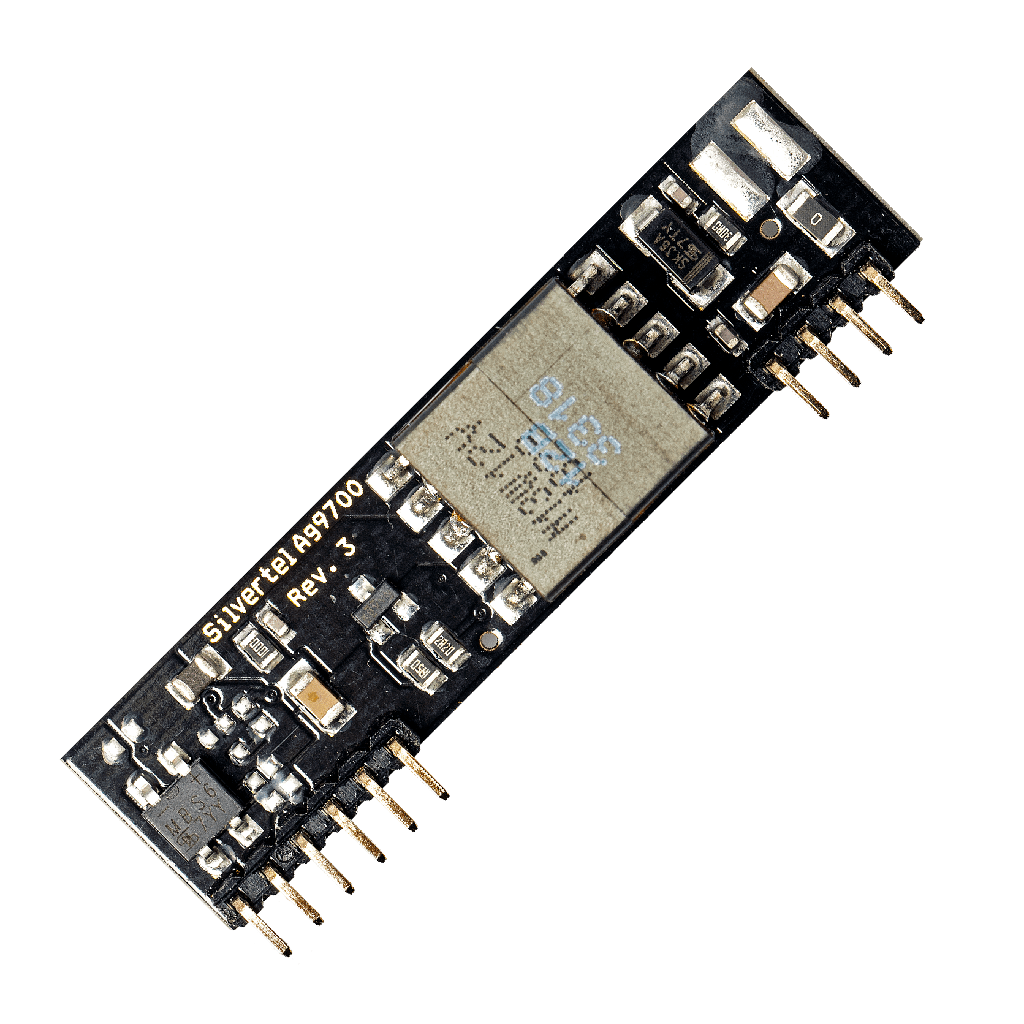

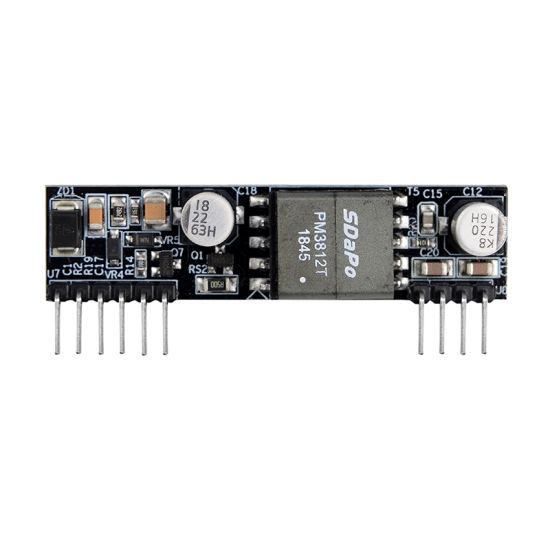

The Ag9700 series of PoE modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power over Ethernet (PoE) standard. The Ag9700 is a complete cost reduced solution, with an optimised DC-DC converter making it both reliable and competitive with POE IC-based alternatives for medium to high volume applications. The module is very easy to use, requiring minimal external components and provides isolation between the input and output compliant with IEEE802.3af. The Ag9700 series is available in 12V, 5V, 3V and 24V options to suit a wide range of applications. An industrial temperature POE module (FL) is also available for operation between -40°DegC to +85°DegC. The modules in the Ag9700 series are the recommended replacements for the Ag9000, Ag9400 and Ag9600 series. Please contact Silvertel for more details.
Cost-optimized IEEE802.3af POE Module
Small Package (SIL)
Industrial temperature option
Overload and short-circuit protection
1500V isolation (input to output)
This is Silvertels standard low power IEEE802.3af PD module evaluation board, for testing and evaluation of Silvertel PD POE modules. It is designed to work with Power Sourcing Equipment (PSE) that supplies power over either the spare pair or the data pair. Ag6100 and Ag6400 are compatible PSE modules. It is suitable for use with the following products – Ag90xx, Ag9120, Ag92xx, Ag94xx, Ag96xx, and Ag97xx. Please use the links provided to order boards or download the User Manual.
Specifications for Ag9700 PD Module, Isolated DC-DC converter, Programmable Class., IEEE802.3af compliant, Includes Bridge Rect diodes, Ind Temp Range, Over Temp. protection
|3.3V or 5V or 12V or 24V
|Normal or Industrial Temperature with Temp protection
|Build in Bridge
|Yes or No
|IEEE 802.3af 13W
|Power module package
|Overload and short-circuit
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
The Ag9700 series of modules are designed to extract power from a conventional twisted-pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. The Ag9700 signature and control circuit provides the PoE compatibility signature required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. By default, all variants of the Ag9700 provide a Class 0 signature, but the Ag9700-FL has the additional feature of classification programming. The DC/DC converter operates over a wide input voltage range and provides a regulated output. The DC/DC converter also has built-in short-circuit output protection.
