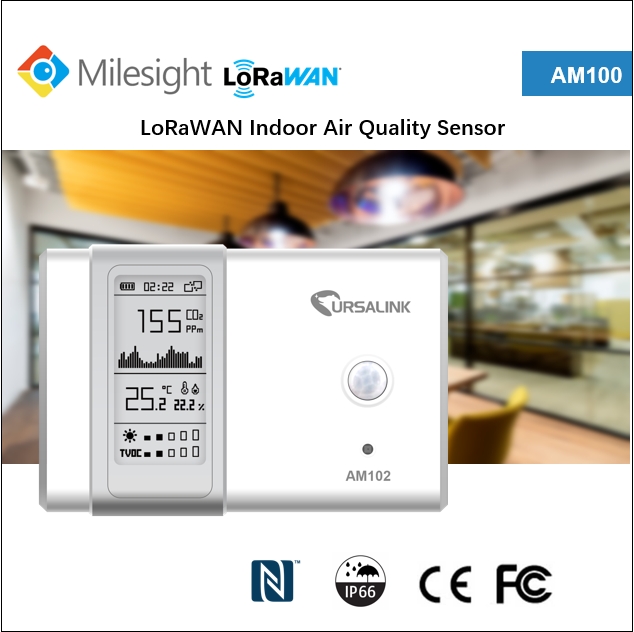

AM100 IAQ LoRaWAN sensor

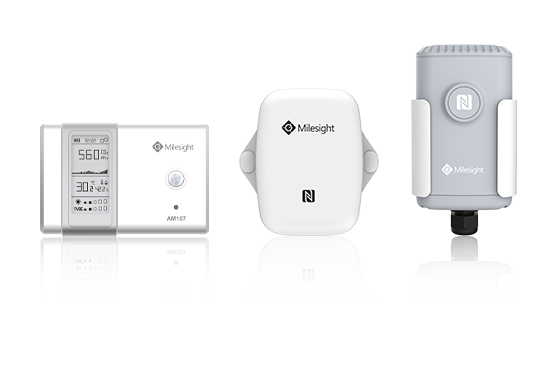

Milesight AM100 Series Ambience Monitoring Sensor consists of multiple smart sensors that are built specifically for indoor ambience monitoring.

Configuration Interface
Sensor
Class
Frequency band
Power type
Battery Capacity
Cable length
Sensors

SG$ 197.01

This combination does not exist.

Lead Time : 2.0 weeks

Add to Cart Get Best Price

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Milesight

At Milesight IoT, we are passionate about the connectivity of “things” to the cloud. We leverage the value of the top trending technologies that transform the world we live in and are committed to our partners who share the same passion.

Do something

Overview

Milesight AM100 Series Ambience Monitoring Sensor consists of multiple smart sensors that are built specifically for indoor ambiance monitoring.

Features

Temperature & Humidity – Monitor and display real-time environmental temperature and humidity data.
Motion (PIR) – Detect the presence of people and monitor the activity within a certain area.
Light – Acquire the real-time luminance data and check the lighting status.
CO? – Aquire CO? concentration data to help people respond to indoor air quality problems.
TVOC – Monitoring ambient air level of VOCs and thus better air quality.
Barometric Pressure – Measure and record barometric pressure data.

FEATURES

Multiple sensors in one
E-Ink screen display
Configuration via NFC
AA Battery or USB powered
Monitor your data in the office or on the go with Milesight IoT Cloud (Android & IoT)

Specifications for AM100 IAQ LoRaWAN sensor

LoRaWAN
Configuration Interface	NFC
Uncategorized
Frequency band	AS923 or AU915 or EU868 or IN865 or KR920 or US915
Sensors	4 sensors or 7 sensors
Sensor	Temp/Humidity/Ambient Light/Motion/CO2/TVOC/Biometric Pressure
Class	Class A
Power type	Battery
Battery Capacity	4000mAh
Cable length	NA

AM100 Series Datasheet
Release date: March 3, 2021
Download
AM100 Series User Guide
Release date: March 3, 2021
Download

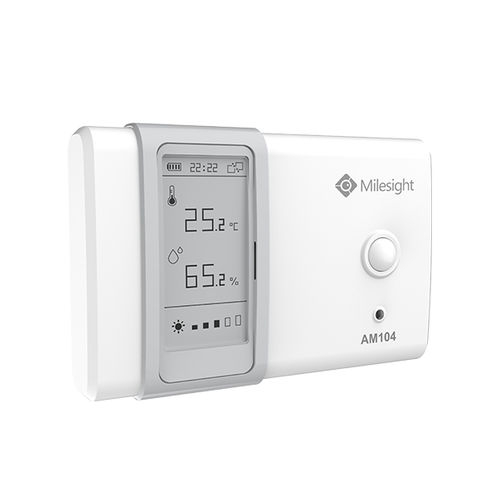

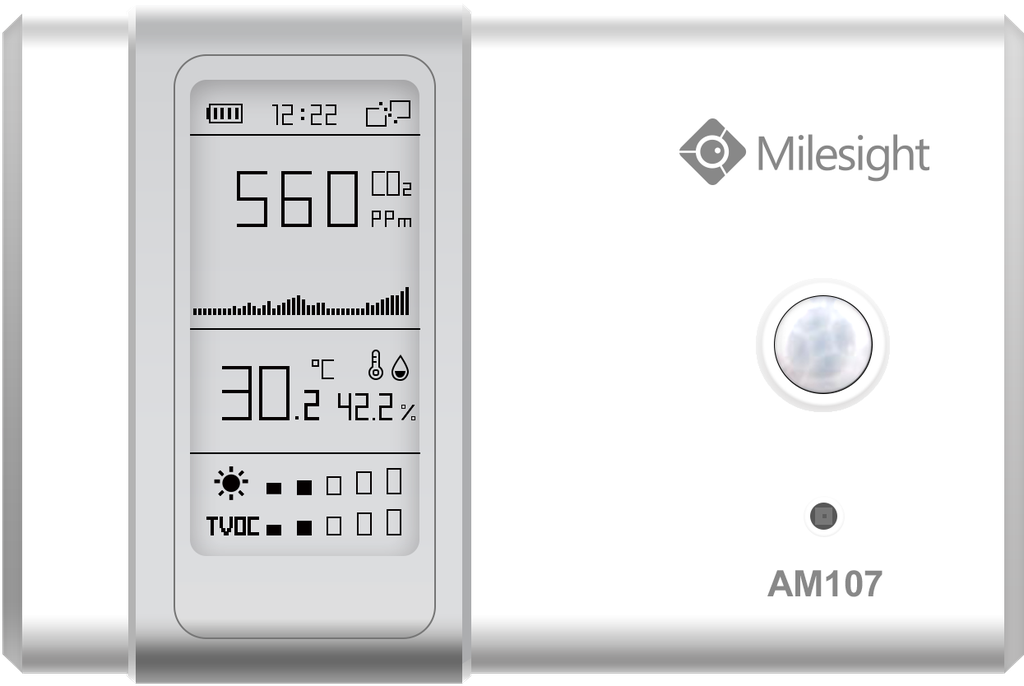

HARDWARE	AM107	AM104
Frequency	AU915/AS923
Tx Power	20dBm
Sensitivity	-147dBm @300bps
Mode	OTAA/ABP
Power Supply	2 × alkaline AA batteries
Battery Lifetime	1 year (SF7)	1.5 years (SF7)
	0.9 year (SF12)	1.2 years (SF12)

SENSORS		AM107	AM104
Temperature	Range	-20°C to + 70°C (operating temperature for screen: 0-45°C)
	Accuracy	±0.3°C (0°C – 70°C), ±0.6°C (-40°C – 0°C)
Humidity	Range	0% to 100% RH
	Accuracy	±3% RH (10% – 90%), ±5% RH (0% – 10%, 90% – 100%)
PIR	Detection Area	94 ° Horizontal, 82 ° Vertical
	Detection Distance	5 m
Light	Range	60000 lux (Visible + IR, IR)
	Accuracy	±30%
CO2	Range	400 – 5000 ppm	N/A
	Accuracy	±30 ppm or ±3 % of reading
TVOC	Range	0 – 60000 ppb (total VOC)
	Accuracy	±15 % of reading
	Long-term Stability	1.3 % accuracy drift per year
Barometric Pressure	Range	300 – 1100 hPa (-40°C – 85°C)
	Accuracy	±1 hPa
